2.1 — Data 101 & Descriptive Statistics

ECON 480 • Econometrics • Fall 2022

Dr. Ryan Safner
Associate Professor of Economics

safner@hood.edu
ryansafner/metricsF22
metricsF22.classes.ryansafner.com

Contents

The Two Big Problems with Data

Data 101

Descriptive Statistics

Measures of Center

Measures of Dispersion

The Two Big Problems with Data

Two Big Problems with Data

• We want to use econometrics to identify causal relationships and make inferences about them

1. Problem for identification: endogeneity

2. Problem for inference: randomness

Identification Problem: Endogeneity

• An independent variable \((X)\) is exogenous if its variation is unrelated to other factors that affect the dependent variable \((Y)\)

• An independent variable \((X)\) is endogenous if its variation is related to other factors that affect the dependent variable \((Y)\)

• Note: unfortunately this is different from how economists talk about “endogenous” vs. “exogenous” variables in theoretical models…

Identification Problem: Endogeneity

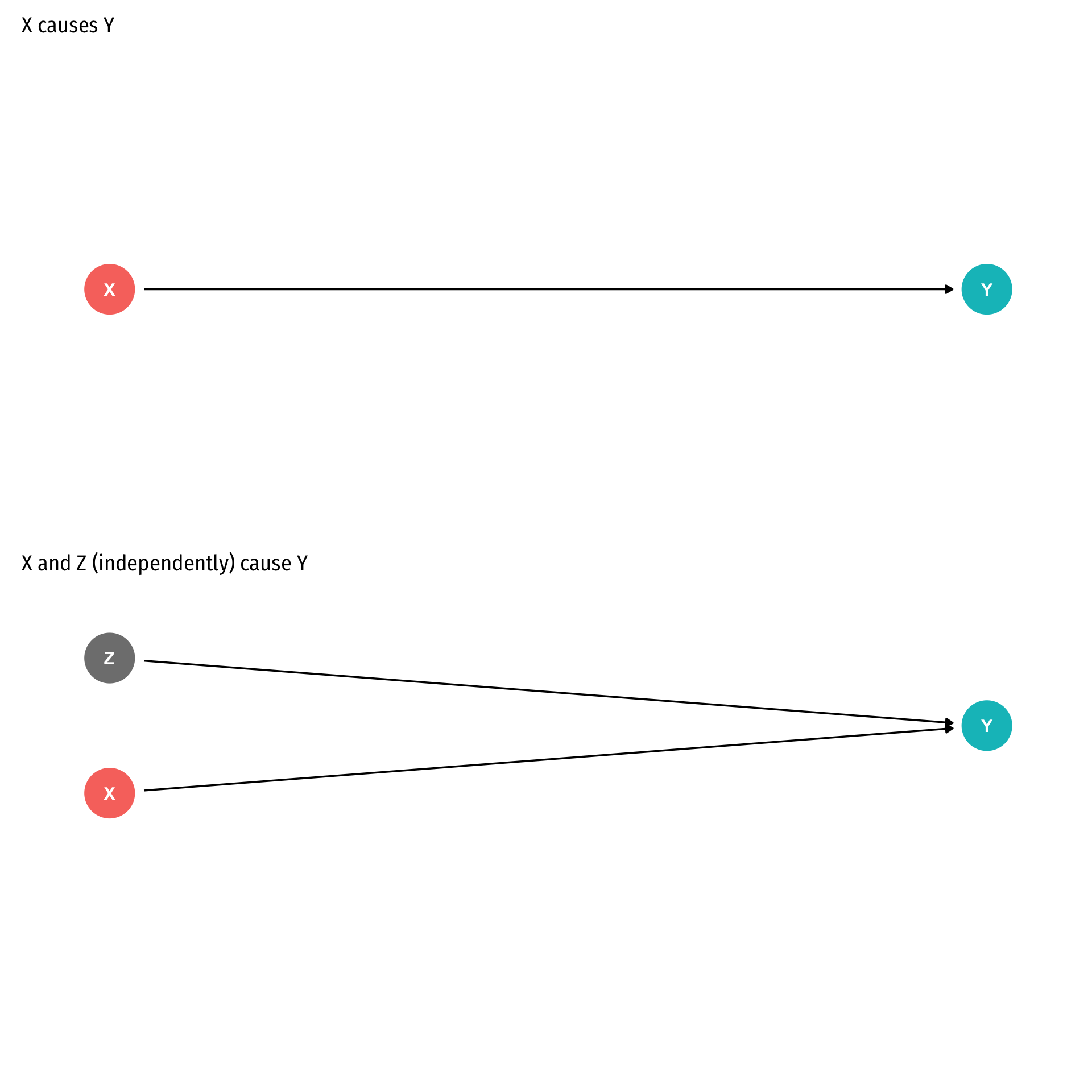

• An independent variable \((X)\) is exogenous if its variation is unrelated to other factors that affect the dependent variable \((Y)\)

Identification Problem: Endogeneity

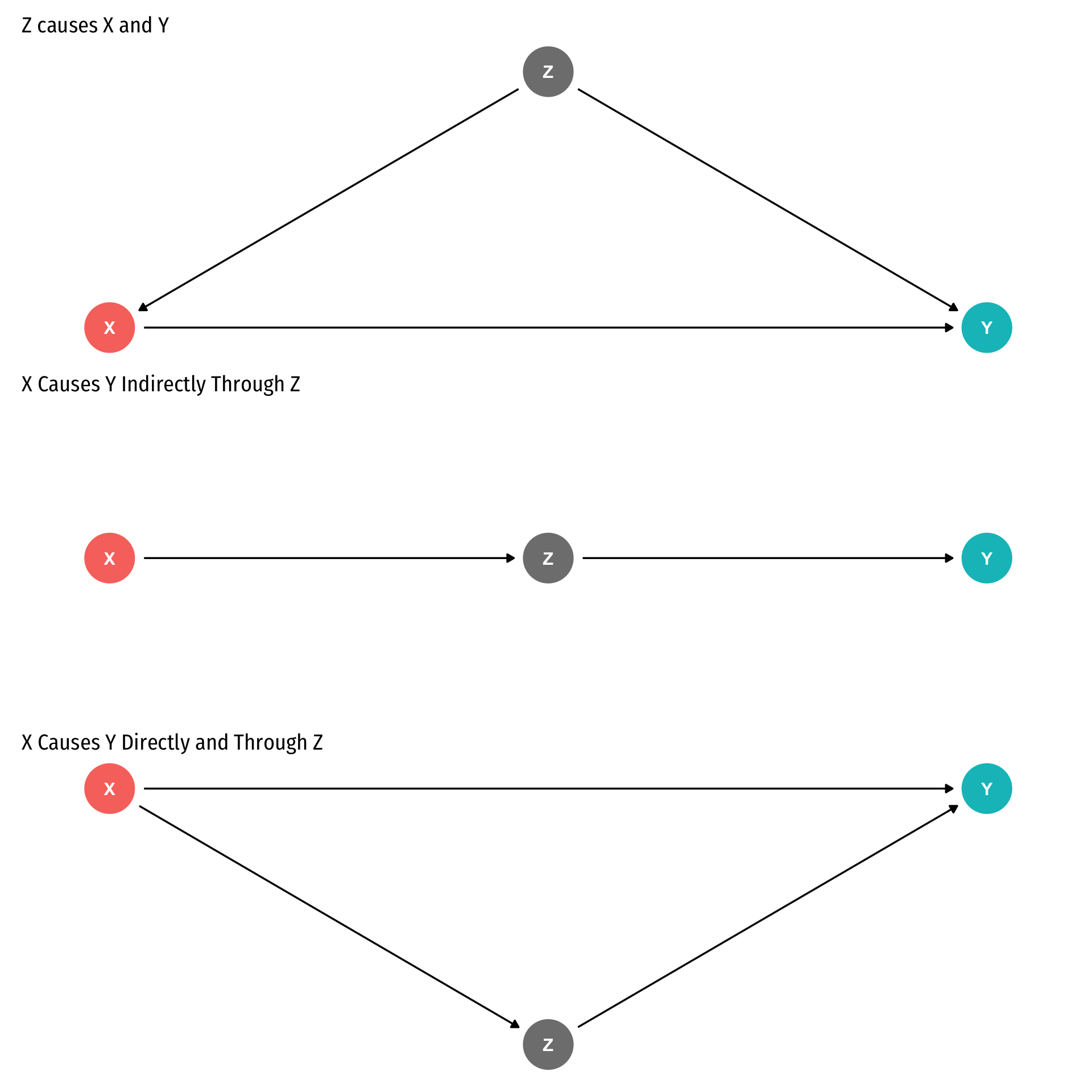

• An independent variable \((X)\) is endogenous if its variation is related to other factors that affect the dependent variable \((Y)\), e.g. \(Z\)

Inference Problem: Randomness

• Data is random due to natural sampling variation

  • Taking one sample of a population will yield slightly different information than another sample of the same population

• Common in statistics, easy to fix

• Inferential Statistics: making claims about a wider population using sample data

  • We use common tools and techniques to deal with randomness

The Two Problems: Where We’re Heading…Ultimately

Sample \(\color{#6A5ACD}{\xrightarrow{\text{statistical inference}}}\) Population \(\color{#e64173}{\xrightarrow{\text{causal indentification}}}\) Unobserved Parameters

• We want to identify causal relationships between population variables
  • Logically first thing to consider
  • Endogeneity problem

• We’ll use sample statistics to infer something about population parameters
  • In practice, we’ll only ever have a finite sample distribution of data
  • We don’t know the population distribution of data
  • Randomness problem

Data 101

Data 101

• Data are information with context

• Individuals are the entities described by a set of data

  • e.g. persons, households, firms, countries

Data 101

• Variables are particular characteristics about an individual
  • e.g. age, income, profits, population, GDP, marital status, type of legal institutions
• Observations or cases are the separate individuals described by a collection of variables
  • e.g. for one individual, we have their age, sex, income, education, etc.

• individuals and observations are not necessarily the same:
  • e.g. we can have multiple observations on the same individual over time

Categorical Variables

• Categorical variables place an individual into one of several possible categories
  • e.g. sex, season, political party
  • may be responses to survey questions
  • can be quantitative (e.g. age, zip code)
• In R: character or factor type data
  • factor \(\implies\) specific possible categories

Categorical Variables: Visualizing I

diamonds %>%
  count(cut) %>%
  mutate(frequency = n / sum(n),
         percent = round(frequency * 100, 2))

Summary of diamonds by cut

cut	n	frequency	percent
Fair	1610	0.0298480	2.98
Good	4906	0.0909529	9.10
Very Good	12082	0.2239896	22.40
Premium	13791	0.2556730	25.57
Ideal	21551	0.3995365	39.95

• Good way to represent categorical data is with a frequency table

• Count (n): total number of individuals in a category

• Frequency: proportion of a category’s occurrence relative to all data

  • Multiply proportions by 100% to get percentages

Categorical Variables: Visualizing II

• Charts and graphs are always better ways to visualize data

• A bar graph represents categories as bars, with lengths proportional to the count or relative frequency of each category

ggplot(diamonds, aes(x=cut,
                     fill=cut))+
  geom_bar()+
  guides(fill=F)+
  theme_pander(base_family = "Fira Sans Condensed",
           base_size=20)

Categorical Data: Pie Charts

• Avoid pie charts!

• People are not good at judging 2-d differences (angles, area)

• People are good at judging 1-d differences (length)

Categorical Data: Pie Charts

• Avoid pie charts!

• People are not good at judging 2-d differences (angles, area)

• People are good at judging 1-d differences (length)

Categorical Data: Alternatives to Pie Charts I

• Try something else: a stacked bar chart

diamonds %>%
  count(cut) %>%
ggplot(data = .)+
  aes(x = "",
      y = n)+
  geom_col(aes(fill = cut))+
  geom_label(aes(label = cut,
                 color = cut),
             position = position_stack(vjust = 0.5)
             )+
  guides(color = F,
         fill = F)+
  theme_void()

Categorical Data: Alternatives to Pie Charts II

• Try something else: a lollipop chart

diamonds %>%
  count(cut) %>%
  mutate(cut_name = as.factor(cut)) %>%
ggplot(., aes(x = cut_name, y = n, color = cut))+
 geom_point(stat="identity",
            fill="black",
            size=12)  +
  geom_segment(aes(x = cut_name, y = 0,
                   xend = cut_name,
                   yend = n), size = 2)+
  geom_text(aes(label = n),color="white", size=3) +
  coord_flip()+
  labs(x = "Cut")+
  theme_pander(base_family = "Fira Sans Condensed",
                base_size=20)+
  guides(color = F)

Categorical Data: Alternatives to Pie Charts III

• Try something else: a treemap

library(treemapify)
diamonds %>%
  count(cut) %>%
ggplot(., aes(area = n, fill = cut)) +
  geom_treemap() +
  guides(fill = FALSE) +
  geom_treemap_text(aes(label = cut),
                    colour = "white",
                    place = "topleft",
                    grow = TRUE)

Quantitative Data I

• Quantitative variables take on numerical values of equal units that describe an individual
  • Units: points, dollars, inches
  • Context: GPA, prices, height
• We can mathematically manipulate only quantitative data
  • e.g. sum, average, standard deviation
• In R: numeric type data
  • integer if whole number
  • double if has decimals

Discrete Data

• Discrete data are finite, with a countable number of alternatives

• Categorical: place data into categories

  • e.g. letter grades: A, B, C, D, F
  • e.g. class level: freshman, sophomore, junior, senior

• Quantitative: integers

  • e.g. SAT Score, number of children, age (years)

Continuous Data

• Continuous data are infinitely divisible, with an uncountable number of alternatives
  • e.g. weight, length, temperature, GPA
• Many discrete variables may be treated as if they are continuous
  • e.g. SAT scores (whole points), wages (dollars and cents)

Spreadsheets

id	name	age	sex	income
1	John	23	Male	41000
2	Emile	18	Male	52600
3	Natalya	28	Female	48000
4	Lakisha	31	Female	60200
5	Cheng	36	Male	81900

• The most common data structure we use is a spreadsheet

  • In R: a data.frame or tibble

• A row contains data about all variables for a single individual

• A column contains data about a single variable across all individuals

Spreadsheets: Indexing

id	name	age	sex	income
1	John	23	Male	41000
2	Emile	18	Male	52600
3	Natalya	28	Female	48000
4	Lakisha	31	Female	60200
5	Cheng	36	Male	81900

• Each cell can be referenced by its row and column (in that order!), df[row,column]

example[3,2] # value in row 3, column 2

# A tibble: 1 × 1
  name
  <chr>
1 Natalya

• Recall with tidyverse you can do this with select() and filter() or slice()

Spreadsheets: Notation

• It is common to use some notation like the following:

• Let \(\{x_1, x_2, \cdots, x_n\}\) be a simple data series on variable \(X\)

  • \(n\) individual observations
  • \(x_i\) is the value of the \(i\)^th observation for \(i=1,2,\cdots, n\)

Quick Check

Let \(x\) represent the score on a homework assignment:

\[75, 100, 92, 87, 79, 0, 95\]

1. What is \(n\)?
2. What is \(x_1\)?
3. What is \(x_6\)?

Datasets: Cross-Sectional

id	name	age	sex	income
1	John	23	Male	41000
2	Emile	18	Male	52600
3	Natalya	28	Female	48000
4	Lakisha	31	Female	60200
5	Cheng	36	Male	81900

• Cross-sectional data: observations of individuals at a given point in time

• Each observation is a unique individual

\[x_{\color{#D7250E}{i}}\]

• Simplest and most common data

• A “snapshot” to compare differences across individuals

Datasets: Time-Series

Year	GDP	Unemployment	CPI
1950	8.2	0.06	100
1960	9.9	0.04	118
1970	10.2	0.08	130
1980	12.4	0.08	190
1985	13.6	0.06	196

• Time-series data: observations of the same individual(s) over time

• Each observation is a time period

\[x_{\color{#0047AB}{t}}\]

• Often used for macroeconomics, finance, and forecasting

• Unique challenges for time series

• A “moving picture” to see how individuals change over time

Datasets: Panel

City	Year	Murders	Population	UR
Philadelphia	1986	5	3.700	8.7
Philadelphia	1990	8	4.200	7.2
D.C.	1986	2	0.250	5.4
D.C.	1990	10	0.275	5.5
New York	1986	3	6.400	9.6

• Panel, or longitudinal dataset: a time-series for each cross-sectional entity
  • Must be same individuals over time
• Each obs. is an individual in a time period

\[x_{\color{#D7250E}{i}\color{#0047AB}{t}}\]

• More common today for serious researchers; unique challenges and benefits

• A combination of “snapshot” comparisons over time

Descriptive Statistics

Variables and Distributions

• Variables take on different values, we can describe a variable’s distribution (of these values)

• We want to visualize and analyze distributions to search for meaningful patterns using statistics

Two Branches of Statistics

• Two main branches of statistics:

1. Descriptive Statistics: describes or summarizes the properties of a sample

2. Inferential Statistics: infers properties about a larger population from the properties of a sample¹

1. We’ll encounter inferential statistics mainly in the context of regression later.

Histogram

• A common way to present a quantitative variable’s distribution is a histogram
  • The quantitative analog to the bar graph for a categorical variable
• Divide up values into bins of a certain size, and count the number of values falling within each bin, representing them visually as bars

Histogram: Bin Size

• A common way to present a quantitative variable’s distribution is a histogram
  • The quantitative analog to the bar graph for a categorical variable
• Divide up values into bins of a certain size, and count the number of values falling within each bin, representing them visually as bars
  • Changing the bin-width will affect the bars

Histogram: Example

Example

A class of 13 students takes a quiz (out of 100 points) with the following results:

\[\{ 0, 62, 66, 71, 71, 74, 76, 79, 83, 86, 88, 93, 95 \}\]

Histogram: Example

Example

A class of 13 students takes a quiz (out of 100 points) with the following results:

\[\{ 0, 62, 66, 71, 71, 74, 76, 79, 83, 86, 88, 93, 95 \}\]

ggplot(quizzes,aes(x=scores))+
  geom_histogram(breaks = seq(0,100,10),
                 color = "white",
                 fill = "#e64173")+
  scale_x_continuous(breaks = seq(0,100,10))+
  scale_y_continuous(limits = c(0,6), expand = c(0,0))+
  labs(x = "Scores",
       y = "Number of Students")+
  theme_bw(base_family = "Fira Sans Condensed",
           base_size=20)

Descriptive Statistics

• We are often interested in the shape or pattern of a distribution, particularly:
  • Measures of center
  • Measures of dispersion
  • Shape of distribution

Measures of Center

Mode

• The .himode of a variable is simply its most frequent value

• A variable can have multiple modes

Example

A class of 13 students takes a quiz (out of 100 points) with the following results:

\[\{ 0, 62, 66, \mathbf{71}, \mathbf{71}, 74, 76, 79, 83, 86, 88, 93, 95 \}\]

Mode

• There is no dedicated mode() function in R, surprisingly

• A workaround in dplyr:

quizzes %>%
  count(scores) %>%
  arrange(desc(n))

Multi-Modal Distributions

• Looking at a histogram, the modes are the “peaks” of the distribution
  • Note: depends on how wide you make the bins!
• May be unimodal, bimodal, trimodal, etc

Symmetry and Skew I

• A distribution is symmetric if it looks roughly the same on either side of the “center”

• The thinner ends (far left and far right) are called the tails of a distribution

Symmetry and Skew I

• If one tail stretches farther than the other, distribution is skewed in the direction of the longer tail
  • In this example, skewed to the left

Outliers

• Outlier: “extreme” value that does not appear part of the general pattern of a distribution

• Can strongly affect descriptive statistics

• Might be the most informative part of the data

• Could be the result of errors

• Should always be explored and discussed!

Arithmetic Mean (Population)

• The natural measure of the center of a population’s distribution is its “average” or arithmetic mean \(\mu\)

\[\mu=\frac{x_1+x_2+...+x_N}{N} = \frac{1}{N} \sum^N_{i=1} x_i\]

• For \(N\) values of variable \(x\), “mu” is the sum of all individual \(x\) values \((x_i)\) from 1 to \(N\), divided by the \(N\) number of values¹

• See today’s appendix for more about the summation operator, \(\displaystyle\sum\), it’ll come up again!

1. Note the mean need not be an actual value of the data!

Arithmetic Mean (Sample)

• When we have a sample, we compute the sample mean \(\bar{x}\)

\[\bar{x}=\frac{x_1+x_2+...+x_n}{n} = \frac{1}{n} \sum^n_{i=1} x_i\]

• For \(n\) values of variable \(x\), “x-bar” is the sum of all individual \(x\) values \((x_i)\) divided by the \(n\) number of values

Arithmetic Mean (Sample)

Example

\[\{0, 62, 66, 71, 71, 74, 76, 79, 83, 86, 88, 93, 95\}\]

\[\begin{align*} \bar{x}&=\frac{1}{13}(0+62+66+71+71+74+76+79+83+86+88+93+95)\\ \bar{x}&=\frac{944}{13}\\ \bar{x}&=72.62\\ \end{align*}\]

quizzes %>%
  summarize(mean = mean(scores))

# A tibble: 1 × 1
   mean
  <dbl>
1  72.6

Arithmetic Mean: Affected by Outliers

Example: If we drop the outlier (0)

\[\{62, 66, 71, 71, 74, 76, 79, 83, 86, 88, 93, 95\}\]

\[\begin{align*} \bar{x}&=\frac{1}{12}(62+66+71+71+74+76+79+83+86+88+93+95)\\ &=\frac{944}{12}\\ &=78.67\\ \end{align*}\]

quizzes %>%
  filter(scores > 0) %>%
  summarize(mean = mean(scores))

# A tibble: 1 × 1
   mean
  <dbl>
1  78.7

Median

\[\{0, 62, 66, 71, 71, 74, \mathbf{76}, 79, 83, 86, 88, 93, 95\}\]

• The median is the midpoint of the distribution
  • 50% to the left of the median, 50% to the right of the median
• Arrange values in numerical order
  • For odd \(n\): median is middle observation
  • For even \(n\): median is average of two middle observations

Mean, Median, and Outliers

Mean, Median, Symmetry, & Skew I

• Symmetric distribution: mean \(\approx\) median

symmetric %>%
  summarize(mean = mean(x),
            median = median(x))

# A tibble: 1 × 2
   mean median
  <dbl>  <dbl>
1     4      4

Mean, Median, Symmetry, & Skew II

• Left-skewed: mean \(<\) median

leftskew %>%
  summarize(mean = mean(x),
            median = median(x))

# A tibble: 1 × 2
   mean median
  <dbl>  <dbl>
1  4.62      5

Mean, Median, Symmetry, & Skew III

• Right-skewed: mean \(>\) median

rightskew %>%
  summarize(mean = mean(x),
            median = median(x))

# A tibble: 1 × 2
   mean median
  <dbl>  <dbl>
1  3.38      3

Measures of Dispersion

Range

• The more variation in the data, the less helpful a measure of central tendency will tell us

• Beyond just the center, we also want to measure the spread

• Simplest metric is range \(=max-min\)

Five Number Summary I

• Common set of summary statistics of a distribution: “five number summary”:

1. Minimum value
2. 25^th percentile \((Q_1\), median of first 50% of data)
3. 50^th percentile (median, \(Q_2)\)
4. 25^th percentile \((Q_3\), median of last 50% of data)
5. Maximum value

# Base R summary command
summary(quizzes$scores)

   Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
   0.00   71.00   76.00   72.62   86.00   95.00

quizzes %>% # dplyr
  summarize(Min = min(scores),
            Q1 = quantile(scores, 0.25),
            Median = median(scores),
            Q3 = quantile(scores, 0.75),
            Max = max(scores))

# A tibble: 1 × 5
    Min    Q1 Median    Q3   Max
  <dbl> <dbl>  <dbl> <dbl> <dbl>
1     0    71     76    86    95

Five Number Summary II

• The \(n\)^th percentile of a distribution is the value that places \(n\) percent of values beneath it

quizzes %>%
  summarize("37th percentile" = quantile(scores,0.37))

# A tibble: 1 × 1
  `37th percentile`
              <dbl>
1              72.3

Boxplot I

• Boxplots are a great way to visualize the 5 number summary

• Height of box: \(Q_1\) to \(Q_3\) (known as interquartile range (IQR), middle 50% of data)

• Line inside box: median (50^th percentile)

• “Whiskers” identify data within \(1.5 \times IQR\)

• Points beyond whiskers are outliers

  • common definition: Outlier \(>1.5 \times IQR\)

Boxplot Comparisons I

• Boxplots (and five number summaries) are great for comparing two distributions

Example

\[\begin{align*} \text{Quiz 1}&: \{0, 62, 66, 71, 71, 74, 76, 79, 83, 86, 88, 93, 95\} \\ \text{Quiz 2}&: \{50, 62, 72, 73, 79, 81, 82, 82, 86, 90, 94, 98, 99\} \\ \end{align*}\]

Boxplot Comparisons II

quizzes_new %>% summary()

    student       quiz_1          quiz_2
 Min.   : 1   Min.   : 0.00   Min.   :50.00
 1st Qu.: 4   1st Qu.:71.00   1st Qu.:73.00
 Median : 7   Median :76.00   Median :82.00
 Mean   : 7   Mean   :72.62   Mean   :80.62
 3rd Qu.:10   3rd Qu.:86.00   3rd Qu.:90.00
 Max.   :13   Max.   :95.00   Max.   :99.00

Aside: Making Nice Summary Tables I

• I don’t like the options available for printing out summary statistics

• So I wrote my own R function called summary_table() that makes nice summary tables (it uses dplyr and tidyr!). To use:

1. Download the summaries.R file from the website¹ and move it to your working directory/project folder

2. Load the function with the source() command:²

source("summaries.R")

1. One day I’ll make this part of a package I’ll write.

2. If it was a package, then you’d load with library(). But you can run a single .R script with source().

Aside: Making Nice Summary Tables II

3. The function has at least 2 arguments: the data.frame (automatically piped in if you use the pipe!) and then all variables you want to summarize, separated by commas¹

mpg %>%
  summary_table(hwy, cty, cyl)

# A tibble: 3 × 9
  Variable   Obs   Min    Q1 Median    Q3   Max  Mean `Std. Dev.`
  <chr>    <dbl> <dbl> <dbl>  <dbl> <dbl> <dbl> <dbl>       <dbl>
1 cty        234     9    14     17    19    35 16.9         4.26
2 cyl        234     4     4      6     8     8  5.89        1.61
3 hwy        234    12    18     24    27    44 23.4         5.95

1. There is one restriction: No variable name can have an underscore (_) in it. You will have to rename them or else you will break the function!

Aside: Making Nice Summary Tables III

4. When rendered in Quarto, it looks nicer:

mpg %>%
  summary_table(hwy, cty, cyl) %>%
  knitr::kable(., format="html")

Variable	Obs	Min	Q1	Median	Q3	Max	Mean	Std. Dev.
cty	234	9	14	17	19	35	16.86	4.26
cyl	234	4	4	6	8	8	5.89	1.61
hwy	234	12	18	24	27	44	23.44	5.95

Measures of Dispersion: Deviations

• Every observation \(i\) deviates from the mean of the data:

\[deviation_i = x_i-\mu \]

• There are as many deviations as there are data points \((n)\)

• We can measure the average or standard deviation of a variable from its mean

• Before we get there…

Variance (Population)

• The population variance \(\sigma^2\) of a population distribution measures the average of the squared deviations from the population mean \((\mu)\)

\[\sigma^2 = \frac{1}{N}\displaystyle\sum^N_{i=1} (x_i-\mu)^2\]

• Why do we square deviations?

• What are these units?

Standard Deviation (Population)

• Square root the variance to get the population standard deviation \(\sigma\), the average deviation from the population mean (in same units as \(x\))

\[\sigma=\sqrt{\sigma^2}=\sqrt{\frac{1}{N}\displaystyle\sum^N_{i=1} (x_i-\mu)^2 }\]

Variance (Sample)

• The sample variance \(s^2\) of a sample distribution measures the average of the squared deviations from the sample mean \((\bar{x})\)

\[\sigma^2 = \frac{1}{n-1}\displaystyle\sum^n_{i=1} (x_i-\bar{x})^2\]

• Why do we divide by \(n-1\)?

Standard Deviation (Sample)

• Square root the sample variance to get the sample standard deviation \(s\), the average deviation from the sample mean (in same units as \(x\))

\[s=\sqrt{s^2}=\sqrt{\frac{1}{n-1}\displaystyle\sum^n_{i=1} (x_i-\bar{x})^2 }\]

Sample Standard Deviation: Example

Example

Calculate the sample standard deviation for the following series:

\[\{2, 4, 6, 8, 10 \}\]

sd(c(2,4,6,8,10))

[1] 3.162278

The Steps to Calculate sd(), Coded I

#  first let's save our data in a tibble
sd_example <- tibble(x = c(2,4,6,8,10))

# first find the mean (just so we know)

sd_example %>%
  summarize(mean(x))

# A tibble: 1 × 1
  `mean(x)`
      <dbl>
1         6

# now let's make some more columns:
sd_example <- sd_example %>%
  mutate(deviations = x - mean(x), # take deviations from mean
         deviations_sq = deviations^2) # square them

The Steps to Calculate sd(), Coded II

sd_example # see what we made

# A tibble: 5 × 3
      x deviations deviations_sq
  <dbl>      <dbl>         <dbl>
1     2         -4            16
2     4         -2             4
3     6          0             0
4     8          2             4
5    10          4            16

The Steps to Calculate sd(), Coded III

sd_example %>%
  # sum the squared deviations
  summarize(sum_sq_devs = sum(deviations_sq),
            # divide by n-1 to get variance
            variance = sum_sq_devs/(n()-1),
            # square root to get sd
            std_dev = sqrt(variance))

# A tibble: 1 × 3
  sum_sq_devs variance std_dev
        <dbl>    <dbl>   <dbl>
1          40       10    3.16

Sample Standard Deviation: You Try

Example

Calculate the sample standard deviation for the following series:

\[\{1, 3, 5, 7 \}\]

sd(c(1,3,5,7))

[1] 2.581989

Descriptive Statistics: Populations vs. Samples

Population parameters

• Population size: \(N\)

• Mean: \(\mu\)

• Variance: \(\sigma^2=\frac{1}{N} \displaystyle\sum^N_{i=1} (x_i-\mu)^2\)

• Standard deviation: \(\sigma = \sqrt{\sigma^2}\)

Sample statistics

• Population size: \(n\)

• Mean: \(\bar{x}\)

• Variance: \(s^2=\frac{1}{n-1} \displaystyle\sum^n_{i=1} (x_i-\bar{x})^2\)

• Standard deviation: \(s = \sqrt{s^2}\)
