2.4 — Goodness of Fit and Bias

ECON 480 • Econometrics • Fall 2022

Dr. Ryan Safner
Associate Professor of Economics

## Contents

Goodness of Fit

The Sampling Distributions of the OLS Estimators

Bias and Exogeneity

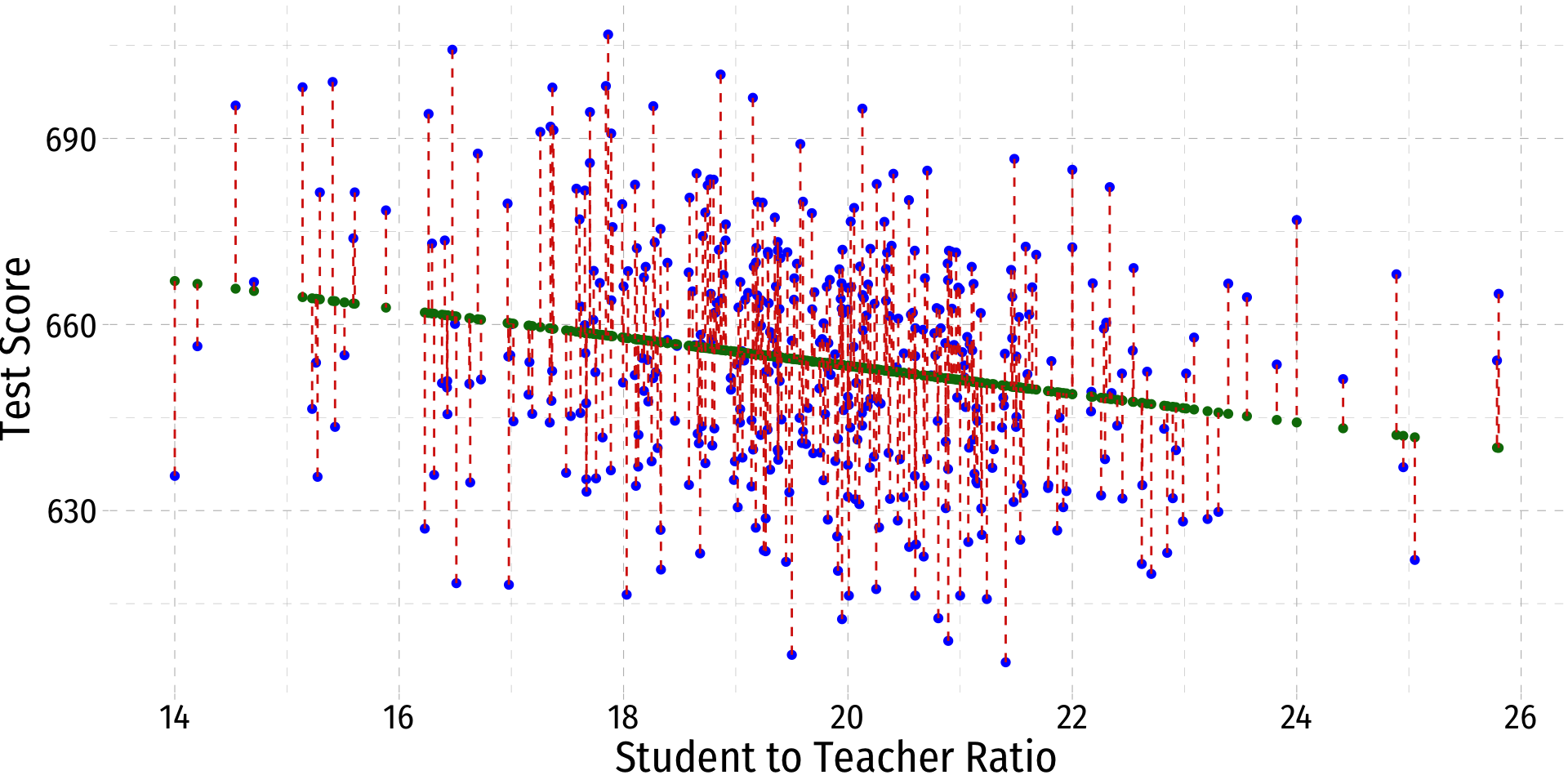

## Actual, Predicted, and Residual Values

• With a simple linear regression model, for each associated $X$ value, we have
1. The observed (or actual) values of $\color{#0047AB}{Y_i}$
2. Predicted (or fitted) values, $\color{#047806}{\hat{Y}_i}$
3. The residual (or error), $\color{#D7250E}{\hat{u}_i}=\color{#0047AB}{Y_i}-\color{#047806}{\hat{Y}_i}$ … the difference between predicted and observed values

\begin{align*} \color{#0047AB}{Y_i} &= \color{#047806}{\hat{Y}_i} + \color{#D7250E}{\hat{u}_i} \\ \color{#0047AB}{\text{Observed}_i} &= \color{#047806}{\text{Model}_i} + \color{#D7250E}{\text{Error}_i} \\ \end{align*}

“All models are wrong. But some are useful. — George Box”

# Goodness of Fit

## Goodness of Fit

• How well does a line fit data? How tightly clustered around the line are the data points?

• Quantify how much variation in $\color{#0047AB}{Y_i}$ is “explained” by the model, $\color{#047806}{\hat{Y}_i}$

$\underbrace{\color{#0047AB}{Y_i}}_{\color{#0047AB}{Observed}}=\underbrace{\color{#047806}{\hat{Y}_i}}_{\color{#047806}{Model}}+\underbrace{\color{#D7250E}{\hat{u}_i}}_{\color{#D7250E}{Error}}$

• Recall OLS estimators chosen to minimize Sum of Squared Residuals (SSR): $\left(\displaystyle \sum^n_{i=1}\hat{u_i}^2\right)$

## $R^2$

• Primary measure1 is R-squared, the fraction of variation in $\color{#0047AB}{Y_i}$ explained by variation in predicted values $\color{#047806}{\hat{Y}_i}$

$R^2 = \frac{var(\color{#047806}{\hat{Y}_i})}{var(\color{#0047AB}{Y_i})}$

## $R^2$ Formula I

$R^2 = \frac{\color{#047806}{SSM}}{\color{#0047AB}{SST}}$

• Model Sum of Squares (SSM):1 sum of squared deviations of predicted values from their mean2

$\color{#047806}{SSM} = \sum^n_{i=1}(\hat{Y_i}-\bar{Y})^2$

• Total Sum of Squares (TSS): sum of squared deviations of observed values from their mean

$\color{#0047AB}{SST} = \sum^n_{i=1}(Y_i-\bar{Y})^2$

## $R^2$ Formula II

• Equivalently, $R^2$ is the complement of the fraction of unexplained variation in $Y_i$

$R^2=1-\left(\frac{\color{#D7250E}{SSR}}{\color{#0047AB}{SST}}\right)$

• Equivalently, the square of the correlation coefficient between $X$ and $Y$1:

$R^2=(r_{X,Y})^2$

## Visualizing $R^2$ I

• Total Variation in Y: Areas A + C

$SST = \sum^n_{i=1}(Y_i-\bar{Y})^2$

• Variation in Y explained by X: Area C

$\color{#047806}{SSM} = \sum^n_{i=1}(\hat{Y_i}-\bar{Y})^2$

• Unexplained variation in Y: Area A

$\color{#D7250E}{SSR} = \sum^n_{i=1}(\hat{u_i})^2$

$R^2 = \frac{SSM}{SST} = \frac{\color{purple}{C}}{\color{red}{A}+\color{purple}{C}}$

## Visualizing $R^2$ II

# make a function to calc. sum of sq. devs
sum_sq <- function(x){sum((x - mean(x))^2)}

# find total sum of squares
SST <- school_reg %>%
augment() %>%
summarize(SST = sum_sq(testscr))

# find explained sum of squares
SSM <- school_reg %>%
augment() %>%
summarize(SSM = sum_sq(.fitted))

# look at them and divide to get R^2
tribble(
~SSM, ~SST, ~R_sq,
SSM, SST, SSM/SST
) %>%
knitr::kable()
SSM SST R_sq
7794.11 152109.6 0.0512401

$R^2 = \frac{SSM}{SST} = \frac{\color{purple}{C}}{\color{red}{A}+\color{purple}{C}}=0.05$

## Calculating $R^2$ in R I

• Recall broom’s augment() command makes a lot of new regression-based values like:
• .fitted: predicted values $(\hat{Y_i})$
• .resid: residuals $(\hat{u_i})$
library(broom)
school_reg %>%
augment()
testscr str .fitted .resid .hat .sigma .cooksd .std.resid
690.80 17.88991 658.1474 32.6526000 0.0044244 18.53408 0.0068925 1.7612148
661.20 21.52466 649.8608 11.3391671 0.0047485 18.59490 0.0008927 0.6117112
643.60 18.69723 656.3069 -12.7068869 0.0029742 18.59279 0.0006996 -0.6848850
647.70 17.35714 659.3620 -11.6619808 0.0058575 18.59441 0.0011673 -0.6294767
640.85 18.67133 656.3659 -15.5159250 0.0030072 18.58766 0.0010548 -0.8363024
605.55 21.40625 650.1308 -44.5807574 0.0044603 18.47411 0.0129531 -2.4046387
606.75 19.50000 654.4767 -47.7266907 0.0023941 18.45548 0.0079356 -2.5716597
609.00 20.89412 651.2984 -42.2983704 0.0034291 18.48716 0.0089463 -2.2803484
612.50 19.94737 653.4568 -40.9567760 0.0024438 18.49453 0.0059658 -2.2069310
612.65 20.80556 651.5003 -38.8502504 0.0032862 18.50537 0.0072306 -2.0943066
615.75 21.23809 650.5142 -34.7641689 0.0040831 18.52485 0.0072052 -1.8747872
616.30 21.00000 651.0570 -34.7569905 0.0036136 18.52492 0.0063680 -1.8739584
616.30 20.60000 651.9689 -35.6689130 0.0029950 18.52080 0.0055515 -1.9225289
616.30 20.00822 653.3181 -37.0180659 0.0024712 18.51448 0.0049285 -1.9947233
616.45 18.02778 657.8331 -41.3830610 0.0041152 18.49207 0.0102908 -2.2317715
617.35 20.25196 652.7624 -35.4123888 0.0026303 18.52202 0.0048022 -1.9083535
618.05 16.97787 660.2267 -42.1766170 0.0071084 18.48740 0.0185757 -2.2779936
618.30 16.50980 661.2938 -42.9937160 0.0089166 18.48263 0.0243010 -2.3242432
619.80 22.70402 647.1721 -27.3721439 0.0086398 18.55446 0.0095387 -1.4795333
620.30 19.91111 653.5394 -33.2394468 0.0024298 18.53171 0.0039069 -1.7910748
620.50 18.33333 657.1365 -36.6364656 0.0035203 18.51621 0.0068913 -1.9751997
621.40 22.61905 647.3659 -25.9658367 0.0082974 18.55936 0.0082379 -1.4032766
621.75 19.44828 654.5946 -32.8446103 0.0024056 18.53340 0.0037763 -1.7697780
622.05 25.05263 641.8178 -19.7677069 0.0219144 18.57747 0.0129635 -1.0757207
622.60 20.67544 651.7969 -29.1969420 0.0030953 18.54804 0.0038451 -1.5737735
623.10 18.68235 656.3408 -33.2407957 0.0029931 18.53166 0.0048183 -1.7916534
623.20 22.84553 646.8495 -23.6495125 0.0092313 18.56681 0.0076172 -1.2786973
623.45 19.26667 655.0086 -31.5586344 0.0024741 18.53877 0.0035862 -1.7005437
623.60 19.25000 655.0466 -31.4466672 0.0024826 18.53923 0.0035731 -1.6945175
624.15 20.54545 652.0933 -27.9432316 0.0029272 18.55269 0.0033295 -1.5060690
624.55 20.60697 651.9530 -27.4029716 0.0030039 18.55462 0.0032865 -1.4770072
624.95 21.07268 650.8913 -25.9412664 0.0037489 18.55965 0.0036811 -1.3987447
625.30 21.53581 649.8354 -24.5354367 0.0047766 18.56421 0.0042044 -1.3236257
625.85 19.90400 653.5556 -27.7056741 0.0024273 18.55357 0.0027114 -1.4928911
626.10 21.19407 650.6145 -24.5145628 0.0039906 18.56430 0.0035010 -1.3219776
626.80 21.86535 649.0841 -22.2840870 0.0056821 18.57102 0.0041331 -1.2027182
626.90 18.32965 657.1449 -30.2448510 0.0035267 18.54397 0.0047052 -1.6306107
627.10 16.22857 661.9349 -34.8349462 0.0101436 18.52405 0.0181933 -1.8843463
627.25 19.17857 655.2095 -27.9594856 0.0025232 18.55265 0.0028710 -1.5066399
627.30 20.27737 652.7044 -25.4044560 0.0026515 18.56148 0.0024914 -1.3690462
628.25 22.98614 646.5290 -18.2789658 0.0098456 18.58147 0.0048593 -0.9886255
628.40 20.44444 652.3235 -23.9235136 0.0028120 18.56620 0.0023440 -1.2893420
628.55 19.82085 653.7452 -25.1951733 0.0024027 18.56217 0.0022195 -1.3575986
628.65 23.20522 646.0295 -17.3794680 0.0108552 18.58354 0.0048531 -0.9404554
628.75 19.26697 655.0080 -26.2579595 0.0024740 18.55863 0.0024826 -1.4149156
629.80 23.30189 645.8091 -16.0090672 0.0113210 18.58652 0.0042987 -0.8665030
630.35 21.18829 650.6277 -20.2777471 0.0039786 18.57661 0.0023882 -1.0934956
630.40 20.87180 651.3493 -20.9492352 0.0033921 18.57483 0.0021706 -1.1293737
630.55 19.01749 655.5767 -25.0267237 0.0026397 18.56271 0.0024071 -1.3486822
630.55 21.91938 648.9610 -18.4109799 0.0058443 18.58124 0.0029028 -0.9937597
631.05 20.10124 653.1060 -22.0559340 0.0025226 18.57177 0.0017862 -1.1885175
631.40 21.47651 649.9706 -18.5706002 0.0046291 18.58089 0.0023335 -1.0017633
631.85 20.06579 653.1868 -21.3368264 0.0025016 18.57379 0.0016576 -1.1497552
631.90 20.37510 652.4816 -20.5816166 0.0027409 18.57584 0.0016907 -1.1091931
631.95 22.44648 647.7593 -15.8092651 0.0076317 18.58699 0.0028050 -0.8540965
632.00 22.89524 646.7362 -14.7361970 0.0094455 18.58910 0.0030274 -0.7968524
632.20 20.49797 652.2015 -20.0014969 0.0028713 18.57736 0.0016732 -1.0779995
632.25 20.00000 653.3368 -21.0867866 0.0024672 18.57448 0.0015966 -1.1362620
632.45 22.25658 648.1922 -15.7422648 0.0069451 18.58714 0.0025275 -0.8501827
632.85 21.56436 649.7703 -16.9203622 0.0048493 18.58468 0.0020303 -0.9128447
632.95 19.47737 654.5283 -21.5782678 0.0023987 18.57313 0.0016253 -1.1627056
633.05 17.67002 658.6487 -25.5987041 0.0049700 18.56074 0.0047638 -1.3811205
633.15 21.94756 648.8967 -15.7466959 0.0059305 18.58715 0.0021551 -0.8499879
633.65 21.78339 649.2710 -15.6209661 0.0054434 18.58741 0.0019447 -0.8429946
633.90 19.14000 655.2974 -21.3973987 0.0025479 18.57362 0.0016981 -1.1530460
634.00 18.11050 657.6445 -23.6444923 0.0039418 18.56702 0.0032168 -1.2750268
634.05 20.68242 651.7810 -17.7309406 0.0031050 18.58290 0.0014225 -0.9557378
634.10 22.62361 647.3555 -13.2554886 0.0083155 18.59181 0.0021516 -0.7163754
634.10 21.78650 649.2639 -15.1639357 0.0054522 18.58833 0.0018356 -0.8183344
634.15 18.58293 656.5674 -22.4174066 0.0031267 18.57071 0.0022899 -1.2083620
634.20 21.54545 649.8134 -15.6134965 0.0048011 18.58744 0.0017114 -0.8423196
634.40 21.15289 650.7084 -16.3083914 0.0039064 18.58602 0.0015165 -0.8794127
634.55 16.63333 661.0121 -26.4621537 0.0084110 18.55766 0.0086750 -1.4301811
634.70 21.14438 650.7278 -16.0278017 0.0038893 18.58660 0.0014583 -0.8642748
634.90 19.78182 653.8342 -18.9341744 0.0023943 18.58006 0.0012491 -1.0202312
634.95 18.98373 655.6537 -20.7037398 0.0026685 18.57551 0.0016654 -1.1157341
635.05 17.66767 658.6541 -23.6040700 0.0049762 18.56711 0.0040554 -1.2735085
635.20 17.75499 658.4550 -23.2550243 0.0047515 18.56818 0.0037570 -1.2545348
635.45 15.27273 664.1141 -28.6640505 0.0151024 18.54939 0.0185256 -1.5544390
635.60 14.00000 667.0156 -31.4156607 0.0235965 18.53797 0.0353765 -1.7110520
635.60 20.59613 651.9777 -16.3777393 0.0029900 18.58589 0.0011685 -0.8827463
635.75 16.31169 661.7454 -25.9954321 0.0097700 18.55920 0.0097510 -1.4059202
635.95 21.12796 650.7652 -14.8152370 0.0038565 18.58903 0.0012354 -0.7988759
636.10 17.48801 659.0636 -22.9636613 0.0054704 18.56903 0.0042238 -1.2392643
636.50 17.88679 658.1545 -21.6544931 0.0044317 18.57285 0.0030364 -1.1680036
636.60 19.30676 654.9172 -18.3172679 0.0024552 18.58154 0.0011989 -0.9870205
636.70 20.89231 651.3025 -14.6025459 0.0034261 18.58944 0.0010653 -0.7872370
636.90 21.28684 650.4030 -13.5030170 0.0041886 18.59143 0.0011153 -0.7282390
636.95 20.19560 652.8909 -15.9408471 0.0025865 18.58681 0.0009568 -0.8590243
637.00 24.95000 642.0517 -5.0517338 0.0211806 18.60155 0.0008170 -0.2748026
637.10 18.13043 657.5990 -20.4990630 0.0039014 18.57602 0.0023929 -1.1053874
637.35 20.00000 653.3368 -15.9868110 0.0024672 18.58671 0.0009177 -0.8614497
637.65 18.72951 656.2333 -18.5832373 0.0029343 18.58090 0.0014762 -1.0015927
637.95 18.25000 657.3265 -19.3764999 0.0036702 18.57893 0.0020103 -1.0447333
637.95 18.99257 655.6335 -17.6835240 0.0026608 18.58301 0.0012114 -0.9529696
638.00 19.88764 653.5929 -15.5929415 0.0024217 18.58752 0.0008569 -0.8402069
638.20 19.37895 654.7527 -16.5526534 0.0024265 18.58552 0.0009675 -0.8919220
638.30 20.46259 652.2822 -13.9821316 0.0028317 18.59059 0.0008063 -0.7535652
638.30 22.29157 648.1124 -9.8123916 0.0070680 18.59698 0.0009996 -0.5299645
638.35 20.70474 651.7301 -13.3801421 0.0031363 18.59165 0.0008183 -0.7212312
638.55 19.06005 655.4797 -16.9296980 0.0026056 18.58470 0.0010872 -0.9123205
638.70 20.23247 652.8068 -14.1067884 0.0026147 18.59037 0.0007575 -0.7602008
639.25 19.69012 654.0432 -14.7932476 0.0023826 18.58909 0.0007587 -0.7971007
639.30 20.36254 652.5103 -13.2102177 0.0027287 18.59195 0.0006934 -0.7119262
639.35 19.75422 653.8971 -14.5471357 0.0023896 18.58956 0.0007359 -0.7838423
639.50 19.37977 654.7508 -15.2508001 0.0024263 18.58820 0.0008212 -0.8217729
639.75 22.92351 646.6717 -6.9217452 0.0095687 18.60012 0.0006768 -0.3743132
639.80 19.37340 654.7653 -14.9653316 0.0024285 18.58876 0.0007915 -0.8063916
639.85 19.15516 655.2629 -15.4128952 0.0025380 18.58788 0.0008776 -0.8305537
639.90 21.30000 650.3730 -10.4730131 0.0042176 18.59613 0.0006756 -0.5648343
640.10 18.30357 657.2043 -17.1043423 0.0035727 18.58430 0.0015246 -0.9221791
640.15 21.07926 650.8763 -10.7262653 0.0037615 18.59579 0.0006315 -0.5783604
640.50 18.79121 656.0926 -15.5926000 0.0028619 18.58751 0.0010135 -0.8403739
640.75 19.62662 654.1880 -13.4380273 0.0023811 18.59156 0.0006257 -0.7240772
640.90 19.59016 654.2711 -13.3711093 0.0023826 18.59168 0.0006199 -0.7204720
641.10 20.87187 651.3491 -10.2491101 0.0033922 18.59644 0.0005196 -0.5525298
641.45 21.11500 650.7948 -9.3448453 0.0038309 18.59758 0.0004882 -0.5038918
641.45 20.08452 653.1441 -11.6941452 0.0025125 18.59439 0.0005001 -0.6301536
641.55 19.91049 653.5409 -11.9908687 0.0024296 18.59394 0.0005084 -0.6461161
641.80 17.81285 658.3231 -16.5230183 0.0046083 18.58555 0.0018389 -0.8913003
642.20 18.13333 657.5924 -15.3924778 0.0038956 18.58790 0.0013471 -0.8300185
642.20 19.22221 655.1100 -12.9099823 0.0024976 18.59246 0.0006059 -0.6956653
642.40 18.66072 656.3901 -13.9900750 0.0030210 18.59058 0.0008615 -0.7540649
642.75 19.60000 654.2487 -11.4987090 0.0023820 18.59469 0.0004583 -0.6195818
643.05 19.28384 654.9695 -11.9195015 0.0024657 18.59405 0.0005098 -0.6422822
643.20 22.81818 646.9119 -3.7119208 0.0091149 18.60234 0.0001852 -0.2006868
643.25 18.80922 656.0515 -12.8015382 0.0028417 18.59264 0.0006783 -0.6899407
643.40 21.37363 650.2052 -6.8051436 0.0043842 18.60024 0.0002966 -0.3670482
643.40 20.02041 653.2903 -9.8902344 0.0024772 18.59691 0.0003527 -0.5329382
643.50 21.49862 649.9202 -6.4202311 0.0046835 18.60056 0.0002822 -0.3463393
643.50 15.42857 663.7588 -20.2587667 0.0142107 18.57638 0.0086918 -1.0981272
643.70 22.40000 647.8652 -4.1652964 0.0074592 18.60211 0.0001902 -0.2250108
643.70 20.12709 653.0471 -9.3470412 0.0025389 18.59759 0.0003229 -0.5036836
644.20 19.03798 655.5300 -11.3300673 0.0026230 18.59494 0.0004902 -0.6105686
644.20 17.34216 659.3962 -15.1961460 0.0059033 18.58826 0.0019977 -0.8202586
644.40 17.01863 660.1337 -15.7337076 0.0069648 18.58716 0.0025321 -0.8497290
644.45 20.80000 651.5129 -7.0629295 0.0032776 18.60001 0.0002383 -0.3807408
644.45 21.15385 650.7062 -6.2562250 0.0039083 18.60070 0.0002233 -0.3373606
644.50 18.45833 656.8515 -12.3514896 0.0033128 18.59337 0.0007368 -0.6658426
644.55 19.14082 655.2955 -10.7455612 0.0025474 18.59577 0.0004282 -0.5790481
644.70 19.40766 654.6872 -9.9872625 0.0024171 18.59679 0.0003508 -0.5381504
644.95 19.56896 654.3195 -9.3694538 0.0023844 18.59756 0.0003046 -0.5048523
645.10 21.50120 649.9143 -4.8143634 0.0046899 18.60173 0.0001589 -0.2597116
645.25 17.52941 658.9693 -13.7192551 0.0053527 18.59103 0.0014748 -0.7403339
645.55 16.43017 661.4753 -15.9253223 0.0092534 18.58673 0.0034625 -0.8610703
645.55 19.79654 653.8006 -8.2505891 0.0023972 18.59883 0.0002375 -0.4445676
645.60 17.18613 659.7519 -14.1518853 0.0063978 18.59024 0.0018796 -0.7640815
645.75 17.61589 658.7721 -13.0220905 0.0051142 18.59224 0.0012689 -0.7026285
645.75 20.12537 653.0510 -7.3009626 0.0025378 18.59979 0.0001969 -0.3934265
646.00 22.16667 648.3972 -2.3972034 0.0066367 18.60286 0.0000560 -0.1294442
646.20 19.96154 653.4245 -7.2244596 0.0024497 18.59986 0.0001861 -0.3892868
646.35 19.03945 655.5267 -9.1766772 0.0026218 18.59779 0.0003214 -0.4945238
646.40 15.22436 664.2243 -17.8243069 0.0153857 18.58242 0.0073020 -0.9667435
646.50 21.14475 650.7270 -4.2269747 0.0038900 18.60208 0.0001014 -0.2279332
646.55 19.64390 654.1486 -7.5986387 0.0023810 18.59950 0.0002000 -0.4094351
646.70 21.04869 650.9460 -4.2459648 0.0037035 18.60207 0.0000974 -0.2289358
646.90 20.17544 652.9368 -6.0367973 0.0025718 18.60088 0.0001364 -0.3253100
646.95 21.39130 650.1649 -3.2149290 0.0044252 18.60256 0.0000668 -0.1734068
647.05 20.00833 653.3178 -6.2678181 0.0024712 18.60070 0.0001413 -0.3377422
647.25 20.29137 652.6725 -5.4225136 0.0026635 18.60133 0.0001140 -0.2922210
647.30 17.66667 658.6563 -11.3563529 0.0049788 18.59488 0.0009392 -0.6127092
647.60 18.22055 657.3936 -9.7936146 0.0037254 18.59703 0.0005213 -0.5280623
647.60 20.27100 652.7190 -5.1189788 0.0026461 18.60154 0.0001010 -0.2758610
648.00 20.19895 652.8832 -4.8832278 0.0025890 18.60169 0.0000899 -0.2631489
648.20 21.38424 650.1810 -1.9809613 0.0044088 18.60298 0.0000253 -0.1068482
648.25 20.97368 651.1170 -2.8669730 0.0035663 18.60270 0.0000428 -0.1545721
648.35 20.00000 653.3368 -4.9868110 0.0024672 18.60163 0.0000893 -0.2687144
648.70 17.15328 659.8268 -11.1267409 0.0065060 18.59520 0.0011818 -0.6007822
648.95 22.34977 647.9798 0.9701931 0.0072760 18.60317 0.0000101 0.0524053
649.15 22.17007 648.3894 0.7605829 0.0066482 18.60320 0.0000056 0.0410702
649.30 18.18182 657.4819 -8.1818441 0.0037997 18.59890 0.0003712 -0.4411736
649.50 18.95714 655.7143 -6.2142988 0.0026923 18.60074 0.0001514 -0.3348954
649.70 19.74533 653.9174 -4.2174323 0.0023883 18.60208 0.0000618 -0.2272475
649.85 16.42623 661.4843 -11.6343227 0.0092702 18.59443 0.0018514 -0.6290645
650.45 16.62540 661.0302 -10.5802839 0.0084429 18.59596 0.0013921 -0.5718342
650.55 16.38177 661.5857 -11.0356758 0.0094622 18.59531 0.0017009 -0.5967536
650.60 20.07416 653.1677 -2.5677456 0.0025064 18.60281 0.0000241 -0.1383658
650.65 17.99544 657.9068 -7.2567670 0.0041854 18.59982 0.0003219 -0.3913683
650.90 19.39130 654.7245 -3.8244723 0.0024223 18.60229 0.0000516 -0.2060772
650.90 16.42857 661.4790 -10.5789340 0.0092602 18.59595 0.0015290 -0.5719970
651.15 16.72949 660.7929 -9.6429060 0.0080316 18.59719 0.0010991 -0.5210635
651.20 24.41345 643.2750 7.9250504 0.0175731 18.59911 0.0016561 0.4303121
651.35 18.26415 657.2942 -5.9442148 0.0036441 18.60095 0.0001878 -0.3204933
651.40 18.95504 655.7191 -4.3190663 0.0026942 18.60203 0.0000732 -0.2327595
651.45 21.03896 650.9682 0.4818585 0.0036853 18.60322 0.0000012 0.0259808
651.80 20.74074 651.6480 0.1520070 0.0031883 18.60323 0.0000001 0.0081939
651.85 18.10000 657.6684 -5.8184459 0.0039633 18.60104 0.0001959 -0.3137625
651.90 19.84615 653.6875 -1.7875032 0.0024092 18.60303 0.0000112 -0.0963169
652.00 21.60000 649.6891 2.3109075 0.0049416 18.60289 0.0000386 0.1246780
652.10 22.44242 647.7685 4.3314405 0.0076165 18.60201 0.0002101 0.2340045
652.10 23.01438 646.4646 5.6353877 0.0099721 18.60117 0.0004679 0.3048118
652.30 17.74892 658.4688 -6.1688330 0.0047668 18.60077 0.0002652 -0.3327915
652.30 18.28664 657.2429 -4.9428697 0.0036031 18.60165 0.0001284 -0.2664984
652.35 19.26544 655.0114 -2.6614627 0.0024747 18.60278 0.0000255 -0.1434135
652.40 22.66667 647.2573 5.1427251 0.0084881 18.60151 0.0003307 0.2779560
652.40 19.29412 654.9461 -2.5460401 0.0024609 18.60281 0.0000232 -0.1371930
652.50 17.36364 659.3472 -6.8471910 0.0058378 18.60019 0.0004010 -0.3695860
652.85 19.82143 653.7439 -0.8939202 0.0024028 18.60318 0.0000028 -0.0481674
653.10 20.43378 652.3479 0.7521214 0.0028007 18.60320 0.0000023 0.0405349
653.40 21.03721 650.9721 2.4278745 0.0036820 18.60285 0.0000317 0.1309058
653.50 19.92462 653.5086 -0.0086306 0.0024348 18.60323 0.0000000 -0.0004651
653.55 19.00986 655.5941 -2.0441346 0.0026461 18.60296 0.0000161 -0.1101581
653.55 23.82222 644.6229 8.9271951 0.0140425 18.59802 0.0016672 0.4838576
653.70 19.36909 654.7752 -1.0751999 0.0024300 18.60316 0.0000041 -0.0579361
653.80 19.82857 653.7276 0.0723767 0.0024046 18.60323 0.0000000 0.0038999
653.85 15.25885 664.1457 -10.2957130 0.0151833 18.59629 0.0024033 -0.5583550
653.95 17.16129 659.8085 -5.8585474 0.0064795 18.60101 0.0003263 -0.3163248
654.10 21.81333 649.2027 4.8972418 0.0055295 18.60168 0.0001942 0.2642940
654.20 19.07471 655.4463 -1.2463129 0.0025944 18.60313 0.0000059 -0.0671619
654.20 25.78512 640.1478 14.0521378 0.0275595 18.59014 0.0083342 0.7669068
654.30 18.21261 657.4117 -3.1116961 0.0037404 18.60261 0.0000528 -0.1677809
654.60 18.16606 657.5178 -2.9178351 0.0038305 18.60268 0.0000476 -0.1573352
654.85 16.97297 660.2378 -5.3878525 0.0071258 18.60135 0.0003039 -0.2910049
654.85 21.50087 649.9151 4.9348930 0.0046891 18.60166 0.0001669 0.2662135
654.90 20.60000 651.9689 2.9311237 0.0029950 18.60268 0.0000375 0.1579855
655.05 16.99029 660.1983 -5.1483570 0.0070644 18.60151 0.0002750 -0.2780608
655.05 20.77954 651.5596 3.4904750 0.0032463 18.60245 0.0000577 0.1881578
655.05 15.51247 663.5675 -8.5174540 0.0137442 18.59849 0.0014845 -0.4615797
655.20 19.88506 653.5988 1.6011176 0.0024209 18.60307 0.0000090 0.0862743
655.30 21.39882 650.1477 5.1523100 0.0044428 18.60151 0.0001723 0.2779077
655.35 20.49751 652.2026 3.1474228 0.0028708 18.60259 0.0000414 0.1696333
655.35 19.36376 654.7873 0.5626794 0.0024320 18.60321 0.0000011 0.0303195
655.40 17.65957 658.6725 -3.2724836 0.0049975 18.60254 0.0000783 -0.1765619
655.55 21.01796 651.0160 4.5339452 0.0036464 18.60190 0.0001094 0.2444563
655.70 19.05565 655.4897 0.2102249 0.0026090 18.60323 0.0000002 0.0113288
655.80 22.53846 647.5496 8.2504072 0.0079816 18.59881 0.0007995 0.4458073
655.85 21.10787 650.8111 5.0389248 0.0038170 18.60159 0.0001414 0.2717065
656.40 20.05135 653.2197 3.1803139 0.0024936 18.60258 0.0000367 0.1713736
656.50 14.20176 666.5557 -10.0556550 0.0221058 18.59657 0.0033851 -0.5472630
656.55 18.47687 656.8092 -0.2591875 0.0032838 18.60323 0.0000003 -0.0139720
656.65 18.63542 656.4478 0.2022480 0.0030545 18.60323 0.0000002 0.0109013
656.70 20.94595 651.1802 5.5198006 0.0035175 18.60126 0.0001563 0.2975913
656.80 21.08548 650.8621 5.9379523 0.0037735 18.60095 0.0001941 0.3201764
656.80 18.69288 656.3168 0.4832807 0.0029797 18.60322 0.0000010 0.0260483
657.00 20.86808 651.3577 5.6422654 0.0033860 18.60117 0.0001572 0.3041737
657.00 19.82558 653.7344 3.2655619 0.0024038 18.60254 0.0000373 0.1759593
657.15 19.75000 653.9067 3.2432858 0.0023890 18.60255 0.0000366 0.1747577
657.40 19.50000 654.4767 2.9233337 0.0023941 18.60268 0.0000298 0.1575181
657.50 18.39080 657.0054 0.4945557 0.0034223 18.60322 0.0000012 0.0266619
657.55 18.78676 656.1027 1.4473171 0.0028669 18.60310 0.0000087 0.0780043
657.65 19.77018 653.8607 3.7892917 0.0023922 18.60231 0.0000500 0.2041784
657.75 19.33333 654.8567 2.8933427 0.0024438 18.60269 0.0000298 0.1559060
657.80 21.46392 649.9993 7.8006508 0.0045983 18.59929 0.0004090 0.4207880
657.90 23.08492 646.3038 11.5962704 0.0102929 18.59447 0.0020464 0.6273309
658.00 21.06299 650.9134 7.0866316 0.0037305 18.59998 0.0002734 0.3821053
658.35 18.68687 656.3305 2.0195013 0.0029873 18.60297 0.0000178 0.1088493
658.60 20.77024 651.5808 7.0191773 0.0032322 18.60005 0.0002321 0.3783736
658.80 19.30556 654.9200 3.8800005 0.0024557 18.60226 0.0000538 0.2090727
659.05 20.13280 653.0340 6.0160275 0.0025426 18.60089 0.0001340 0.3241860
659.15 20.66964 651.8101 7.3398790 0.0030873 18.59975 0.0002424 0.3956326
659.35 22.28155 648.1353 11.2146930 0.0070326 18.59507 0.0012991 0.6056916
659.40 20.60027 651.9683 7.4317411 0.0029953 18.59966 0.0002410 0.4005656
659.40 20.82734 651.4506 7.9494125 0.0033204 18.59915 0.0003059 0.4285376
659.80 19.22492 655.1038 4.6961767 0.0024961 18.60181 0.0000801 0.2530573
659.90 17.65477 658.6835 1.2165628 0.0050102 18.60314 0.0000108 0.0656382
660.05 17.00000 660.1762 -0.1261626 0.0070301 18.60323 0.0000002 -0.0068139
660.10 16.49773 661.3213 -1.2213189 0.0089672 18.60314 0.0000197 -0.0660263
660.20 19.78261 653.8324 6.3675526 0.0023944 18.60061 0.0001413 0.3431032
660.30 22.30216 648.0883 12.2116809 0.0071055 18.59355 0.0015566 0.6595619
660.75 17.73077 658.5102 2.2398043 0.0048128 18.60291 0.0000353 0.1208341
660.95 20.44836 652.3146 8.6353404 0.0028162 18.59841 0.0003059 0.4653970
661.35 20.37169 652.4894 8.8605813 0.0027376 18.59816 0.0003130 0.4775174
661.45 20.16479 652.9611 8.4889091 0.0025643 18.59858 0.0002690 0.4574473
661.60 21.61538 649.6540 11.9459398 0.0049820 18.59399 0.0010400 0.6445202
661.60 20.56143 652.0568 9.5431374 0.0029466 18.59735 0.0003909 0.5143558
661.85 19.95551 653.4382 8.4117628 0.0024472 18.59866 0.0002520 0.4532635
661.85 21.18387 650.6378 11.2121864 0.0039695 18.59510 0.0007285 0.6046244
661.85 18.81042 656.0488 5.8011813 0.0028404 18.60106 0.0001392 0.3126553
661.90 20.57838 652.0182 9.8818390 0.0029676 18.59692 0.0004222 0.5326168
661.90 18.32461 657.1564 4.7436649 0.0035355 18.60178 0.0001160 0.2557495
661.95 18.82063 656.0255 5.9244818 0.0028291 18.60096 0.0001446 0.3192988
662.40 20.81633 651.4757 10.9243049 0.0033030 18.59551 0.0005747 0.5889032
662.40 20.00000 653.3368 9.0632378 0.0024672 18.59793 0.0002949 0.4883728
662.45 19.68182 654.0622 8.3878317 0.0023821 18.59869 0.0002439 0.4519592
662.50 19.39018 654.7271 7.7729334 0.0024227 18.59933 0.0002130 0.4188354
662.55 20.92732 651.2227 11.3273708 0.0034853 18.59493 0.0006522 0.6106874
662.55 19.94437 653.4636 9.0864284 0.0024426 18.59790 0.0002935 0.4896164
662.65 20.79109 651.5332 11.1167801 0.0032639 18.59524 0.0005880 0.5992673
662.70 19.20354 655.1526 7.5474470 0.0025082 18.59955 0.0002080 0.4067027
662.75 19.02439 655.5610 7.1890123 0.0026340 18.59989 0.0001982 0.3874125
662.90 17.62058 658.7614 4.1386136 0.0051016 18.60212 0.0001278 0.2233043
663.35 20.23715 652.7961 10.5538547 0.0026184 18.59603 0.0004246 0.5687378
663.45 19.29374 654.9469 8.5030256 0.0024611 18.59856 0.0002590 0.4581843
663.50 18.82998 656.0042 7.4957941 0.0028190 18.59960 0.0002307 0.4039823
663.85 20.33949 652.5628 11.2871675 0.0027068 18.59500 0.0005021 0.6082824
663.85 19.22900 655.0945 8.7554483 0.0024938 18.59828 0.0002782 0.4717938
663.90 17.89130 658.1442 5.7558152 0.0044211 18.60109 0.0002140 0.3104565
664.00 19.51881 654.4338 9.5661931 0.0023908 18.59732 0.0003184 0.5154548
664.00 19.08451 655.4239 8.5760649 0.0025870 18.59848 0.0002770 0.4621492
664.15 19.93548 653.4839 10.6661536 0.0024390 18.59588 0.0004038 0.5747378
664.15 18.87326 655.9055 8.2444791 0.0027734 18.59884 0.0002745 0.4443222
664.30 20.14178 653.0135 11.2864431 0.0025486 18.59500 0.0004726 0.6081951
664.40 23.55637 645.2289 19.1710835 0.0126069 18.57923 0.0068826 1.0383250
664.45 21.46479 649.9973 14.4526014 0.0046004 18.58970 0.0014045 0.7796128
664.70 19.19101 655.1811 9.5188868 0.0025156 18.59738 0.0003318 0.5129379
664.75 20.13080 653.0386 11.7114129 0.0025413 18.59437 0.0005074 0.6310932
664.95 25.80000 640.1139 24.8360509 0.0276816 18.56230 0.0261561 1.3555326
664.95 18.77774 656.1233 8.8267082 0.0028772 18.59820 0.0003265 0.4757252
665.10 19.10982 655.3662 9.7337392 0.0025687 18.59711 0.0003543 0.5245295
665.20 19.70109 654.0183 11.1817591 0.0023834 18.59515 0.0004336 0.6025041
665.35 18.61594 656.4922 8.8578021 0.0030809 18.59816 0.0003522 0.4774498
665.65 20.99721 651.0633 14.5866888 0.0036085 18.58946 0.0011200 0.7864541
665.90 20.00000 653.3368 12.5632378 0.0024672 18.59303 0.0005667 0.6769704
665.95 20.98325 651.0952 14.8548507 0.0035834 18.58895 0.0011534 0.8009022
666.00 21.64262 649.5919 16.4080810 0.0050542 18.58578 0.0019907 0.8852986
666.05 20.02967 653.2691 12.7809101 0.0024820 18.59268 0.0005901 0.6887048
666.10 19.81140 653.7668 12.3332116 0.0024004 18.59340 0.0005313 0.6645532
666.15 18.00000 657.8964 8.2536213 0.0041755 18.59882 0.0004154 0.4451279
666.15 19.35811 654.8002 11.3498483 0.0024341 18.59491 0.0004563 0.6115767
666.45 20.17912 652.9284 13.5215262 0.0025745 18.59142 0.0006852 0.7286469
666.55 21.11986 650.7837 15.7663364 0.0038405 18.58714 0.0013932 0.8501548
666.60 23.38974 645.6088 20.9911376 0.0117551 18.57447 0.0076807 1.1364108
666.65 22.18182 648.3627 18.2873646 0.0066879 18.58152 0.0032829 0.9875065
666.65 19.94283 653.4671 13.1828949 0.0024419 18.59200 0.0006176 0.7103516
666.70 17.78826 658.3791 8.3208116 0.0046686 18.59875 0.0004725 0.4488627
666.85 14.70588 665.4064 1.4436151 0.0186186 18.60310 0.0000583 0.0784267
666.85 19.04077 655.5237 11.3263232 0.0026207 18.59494 0.0004895 0.6103662
667.15 20.89195 651.3033 15.8467229 0.0034255 18.58699 0.0012543 0.8543115
667.20 19.83851 653.7050 13.4949908 0.0024071 18.59146 0.0006379 0.7271560
667.45 19.52191 654.4267 13.0232758 0.0023903 18.59227 0.0005899 0.7017325
667.45 20.68622 651.7723 15.6776717 0.0031103 18.58734 0.0011140 0.8450642
667.60 18.18182 657.4819 10.1180826 0.0037997 18.59661 0.0005677 0.5455776
668.00 18.89224 655.8623 12.1377385 0.0027542 18.59371 0.0005909 0.6541365
668.10 24.88889 642.1911 25.9089194 0.0207503 18.55900 0.0210363 1.4090755
668.40 18.58064 656.5726 11.8273796 0.0031299 18.59419 0.0006381 0.6375305
668.60 18.04000 657.8052 10.7947668 0.0040890 18.59569 0.0006957 0.5821497
668.65 17.73399 658.5029 10.1471688 0.0048046 18.59656 0.0007234 0.5474222
668.80 21.45455 650.0207 18.7792872 0.0045756 18.58038 0.0023584 1.0129934
668.90 19.92343 653.5114 15.3886630 0.0024344 18.58793 0.0008390 0.8292048
668.95 20.33942 652.5630 16.3870389 0.0027068 18.58587 0.0010584 0.8831220
669.10 22.54608 647.5322 21.5677538 0.0080111 18.57299 0.0054843 1.1654219
669.30 21.10344 650.8211 18.4789011 0.0038083 18.58113 0.0018977 0.9964061
669.30 18.19743 657.4463 11.8537387 0.0037695 18.59414 0.0007729 0.6391564
669.35 20.10768 653.0913 16.2586817 0.0025265 18.58614 0.0009721 0.8761255
669.35 19.15984 655.2522 14.0977757 0.0025350 18.59039 0.0007334 0.7596848
669.80 19.54545 654.3731 15.4269235 0.0023870 18.58785 0.0008266 0.8312467
669.85 20.88889 651.3103 18.5396862 0.0034204 18.58099 0.0017143 0.9994891
669.95 18.39150 657.0039 12.9461594 0.0034211 18.59239 0.0008361 0.6979379
670.00 19.17990 655.2065 14.7935495 0.0025224 18.58909 0.0008035 0.7971728
670.70 19.39771 654.7099 15.9900520 0.0024202 18.58671 0.0009005 0.8616041
671.25 21.67827 649.5106 21.7393524 0.0051503 18.57259 0.0035616 1.1730041
671.30 19.28889 654.9580 16.3420043 0.0024634 18.58597 0.0009574 0.8805876
671.60 20.34927 652.5405 19.0594660 0.0027160 18.57974 0.0014366 1.0271479
671.60 20.96416 651.1387 20.4612911 0.0035495 18.57613 0.0021675 1.1031558
671.65 19.46039 654.5670 17.0830307 0.0024026 18.58437 0.0010203 0.9204897
671.70 19.28572 654.9652 16.7347320 0.0024649 18.58513 0.0010046 0.9017504
671.75 20.91979 651.2398 20.5101676 0.0034724 18.57601 0.0021302 1.1057482
671.90 20.90021 651.2845 20.6155514 0.0034393 18.57573 0.0021315 1.1114112
671.90 20.59575 651.9786 19.9214224 0.0029895 18.57756 0.0017285 1.0737475
671.95 19.37500 654.7617 17.1882844 0.0024279 18.58414 0.0010439 0.9261729
672.05 19.95122 653.4480 18.6019998 0.0024454 18.58086 0.0012315 1.0023582
672.05 18.84973 655.9592 16.0908748 0.0027979 18.58649 0.0010550 0.8672009
672.30 18.11787 657.6277 14.6723064 0.0039268 18.58930 0.0012339 0.7911967
672.35 19.18341 655.1985 17.1515175 0.0025202 18.58422 0.0010791 0.9242345
672.45 22.00000 648.7772 23.6728422 0.0060937 18.56686 0.0050064 1.2779368
672.55 21.58416 649.7252 22.8248386 0.0049004 18.56946 0.0037338 1.2314197
672.70 20.38889 652.4502 20.2497577 0.0027545 18.57671 0.0016448 1.0913159
673.05 16.29310 661.7878 11.2621850 0.0098528 18.59498 0.0018460 0.6091222
673.25 18.27778 657.2631 15.9868875 0.0036192 18.58669 0.0013493 0.8619517
673.30 19.37472 654.7623 18.5376731 0.0024280 18.58102 0.0012143 0.9988834
673.55 18.90909 655.8239 17.7261356 0.0027376 18.58291 0.0012526 0.9553027
673.55 16.40693 661.5283 12.0216795 0.0093532 18.59383 0.0019948 0.6500360
673.90 15.59140 663.3876 10.5124688 0.0133138 18.59601 0.0021887 0.5695697
674.25 18.70694 656.2847 17.9652882 0.0029620 18.58236 0.0013927 0.9683002
675.40 18.32985 657.1444 18.2556230 0.0035263 18.58166 0.0017140 0.9842273
675.70 17.90235 658.1190 17.5809889 0.0043954 18.58321 0.0019849 0.9482690
676.15 18.91157 655.8182 20.3318165 0.0027352 18.57650 0.0016465 1.0957276
676.55 20.32497 652.5959 23.9540624 0.0026934 18.56611 0.0022503 1.2909116
676.60 20.02457 653.2808 23.3192006 0.0024794 18.56806 0.0019623 1.2565634
676.85 24.00000 644.2176 32.6324221 0.0150551 18.53342 0.0239327 1.7695996
676.95 17.60784 658.7904 18.1595061 0.0051360 18.58186 0.0024782 0.9798370
677.25 19.34853 654.8220 22.4279950 0.0024378 18.57070 0.0017845 1.2085152
677.95 19.67846 654.0698 23.8801872 0.0023819 18.56635 0.0019765 1.2867295
678.05 18.72861 656.2353 21.8147260 0.0029354 18.57245 0.0020349 1.1757630
678.40 15.88235 662.7242 15.6757917 0.0117990 18.58720 0.0042998 0.8486693
678.80 20.05491 653.2116 25.5883913 0.0024955 18.56088 0.0023782 1.3788507
679.40 17.98825 657.9232 21.4768395 0.0042012 18.57335 0.0028301 1.1582872
679.50 16.96629 660.2531 19.2469438 0.0071496 18.57917 0.0038911 1.0395648
679.65 19.23937 655.0709 24.5791567 0.0024882 18.56416 0.0021879 1.3244624
679.75 19.19586 655.1701 24.5799238 0.0025127 18.56415 0.0022097 1.3245200
679.80 19.59906 654.2508 25.5492004 0.0023821 18.56101 0.0022627 1.3766606
680.05 20.54348 652.0978 27.9522879 0.0029248 18.55266 0.0033289 1.5065553
680.45 18.58848 656.5548 23.8952393 0.0031189 18.56628 0.0025952 1.2880163
681.30 15.60419 663.3584 17.9415882 0.0132448 18.58220 0.0063414 0.9720483
681.30 15.29304 664.0678 17.2322354 0.0149843 18.58379 0.0066415 0.9344406
681.60 17.65537 658.6821 22.9178750 0.0050087 18.56918 0.0038483 1.2365064
681.90 17.57976 658.8545 23.0455580 0.0052126 18.56879 0.0040514 1.2435229
682.15 22.33333 648.0172 34.1327919 0.0072168 18.52744 0.0123542 1.8436407
682.45 18.75000 656.1865 26.2634653 0.0029097 18.55859 0.0029236 1.4155214
682.55 18.10241 657.6629 24.8870583 0.0039584 18.56311 0.0035789 1.3420432
682.65 20.25641 652.7522 29.8978048 0.0026340 18.54538 0.0034278 1.6111786
683.35 18.80207 656.0678 27.2821484 0.0028496 18.55506 0.0030893 1.4703811
683.40 18.77230 656.1357 27.2643275 0.0028835 18.55512 0.0031221 1.4694456
684.30 20.40521 652.4130 31.8870645 0.0027710 18.53740 0.0041031 1.7184969
684.35 18.65079 656.4127 27.9372559 0.0030340 18.55271 0.0034503 1.5058276
684.80 20.70707 651.7248 33.0752493 0.0031397 18.53237 0.0050056 1.7828616
684.95 22.00000 648.7772 36.1728422 0.0060937 18.51819 0.0116893 1.9527273
686.05 17.69978 658.5809 27.4691918 0.0048924 18.55430 0.0053989 1.4819807
686.70 21.48329 649.9552 36.7447808 0.0046457 18.51560 0.0091689 1.9821590
687.55 16.70103 660.8578 26.6921837 0.0081426 18.55688 0.0085402 1.4424181
689.10 19.57567 654.3042 34.7958028 0.0023837 18.52485 0.0041997 1.8748943
691.05 17.25806 659.5879 31.4621134 0.0061658 18.53893 0.0089489 1.6984884
691.35 17.37526 659.3207 32.0292749 0.0058026 18.53661 0.0087217 1.7287909
691.90 17.34931 659.3798 32.5201770 0.0058814 18.53454 0.0091147 1.7553571
693.95 16.26229 661.8581 32.0919525 0.0099910 18.53606 0.0152039 1.7358342
694.25 17.70045 658.5793 35.6706910 0.0048906 18.52064 0.0091008 1.9244552
694.80 20.12881 653.0431 41.7569351 0.0025400 18.49022 0.0064467 2.2501556
695.20 18.26539 657.2914 37.9085959 0.0036418 18.51004 0.0076347 2.0439093
695.30 14.54214 665.7797 29.5203181 0.0197142 18.54585 0.0258910 1.6046353
696.55 19.15261 655.2687 41.2813773 0.0025396 18.49279 0.0062997 2.2245288
698.20 17.36574 659.3424 38.8575607 0.0058314 18.50509 0.0129014 2.0973803
698.25 15.13898 664.4190 33.8310304 0.0158934 18.52812 0.0272017 1.8353793
698.45 17.84266 658.2551 40.1948450 0.0045362 18.49833 0.0107106 2.1681499
699.10 15.40704 663.8079 35.2921243 0.0143320 18.52161 0.0266093 1.9131285
700.30 18.86534 655.9236 44.3764533 0.0027816 18.47552 0.0079772 2.3916032
704.30 16.47413 661.3751 42.9249647 0.0090664 18.48300 0.0246377 2.3207019
706.75 17.86263 658.2096 48.5404085 0.0044886 18.45005 0.0154546 2.6182552
645.00 21.88586 649.0374 -4.0373950 0.0057432 18.60218 0.0001371 -0.2179132
672.20 20.20000 652.8808 19.3191890 0.0025898 18.57910 0.0014071 1.0410789
655.75 19.03640 655.5336 0.2163941 0.0026242 18.60323 0.0000002 0.0116613

## Calculating $R^2$ in R II

• Or, simpler, can calculate $R^2$ in R as the ratio of variances in model vs. actual
# as ratio of variances
school_reg %>%
augment() %>%
summarize(r_sq = var(.fitted)/var(testscr)) # var. of *predicted* testscr over var. of *actual* testscr
r_sq
0.0512401

$R^2 = \frac{var(\hat{Y})}{var(Y)} = \frac{\color{red}{\frac{1}{n-1}}\sum^n_{i=1}(\hat{Y_i}-\bar{Y})^2}{\color{red}{\frac{1}{n-1}}\sum^n_{i=1}(Y_i-\bar{Y})^2} \rightarrow \frac{SSM}{SST}$

• SSM and SST are simply the numerators of the variance of $\hat{Y}$ and $Y$, respectively (i.e. before dividing by $n-1$, which will cancel out).

## Standard Error of the Regression

• Standard Error of the Regression1, $\color{#e64173}{\hat{\sigma}_u}$ is an estimator of the standard deviation of $u_i$

$\hat{\sigma_u}=\sqrt{\frac{SSR}{n-2}}=\sqrt{\frac{\sum \hat{u}_i^2}{n-2}}$

• Measures $\approx$ average residual (distance between data points & regression line)
• Degrees of Freedom correction of $n-2$: we use up 2 df to first calculate $\hat{\beta_0}$ and $\hat{\beta_1}$!

## Calculating SER in R

school_reg %>%
augment() %>%
summarize(SSR = sum(.resid^2),
df = n()-2,
SER = sqrt(SSR/df))
SSR df SER
144315.5 418 18.58097

In large samples (where $n-2 \approx n)$, SER $\rightarrow$ standard deviation of the residuals

school_reg %>%
augment() %>%
summarize(sd_resid = sd(.resid))
sd_resid
18.55878

## Goodness of Fit: Looking at R I

school_reg %>% summary()

Call:
lm(formula = testscr ~ str, data = ca_school)

Residuals:
Min      1Q  Median      3Q     Max
-47.727 -14.251   0.483  12.822  48.540

Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 698.9330     9.4675  73.825  < 2e-16 ***
str          -2.2798     0.4798  -4.751 2.78e-06 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 18.58 on 418 degrees of freedom
Multiple R-squared:  0.05124,   Adjusted R-squared:  0.04897
F-statistic: 22.58 on 1 and 418 DF,  p-value: 2.783e-06
• summary() command in Base R gives:
• Multiple R-squared
• Residual standard error (SER)
• Calculated with a df of $n-2$

## Goodness of Fit: Looking at R II

# using broom
library(broom)
school_reg %>% glance()
r.squared adj.r.squared sigma statistic p.value df logLik AIC BIC deviance df.residual nobs
0.0512401 0.0489703 18.58097 22.57511 2.8e-06 1 -1822.25 3650.499 3662.62 144315.5 418 420
• r.squared is 0.05 $\implies$ about 5% of variation in testscr is explained by our model
• sigma (SER) is 18.6 $\implies$ average test score is about 18.6 points above/below our model’s prediction

# extract it if you want with pull
school_r_sq <- glance(school_reg) %>% pull(r.squared)
school_r_sq
[1] 0.0512401

## Two Types of Uses For Regression

$\color{orange}{Y}=\color{teal}{\beta}(\color{purple}{X})$

where $\color{orange}{Y}$ is numeric:

1. Causal inference: estimate $\color{teal}{\hat{\beta}}$ to determine how changes in $\color{purple}{X}$ cause changes in $\color{orange}{Y}$
• Care more about accurately estimating and understanding $\color{teal}{\beta}$
• Remove as much bias in $\color{teal}{\beta}$ as possible
• Don’t care much about goodness of fit! (You’ll never get it in the complex real world)
1. Prediction: predict $\color{orange}{\hat{Y}}$ using an estimated $\color{teal}{\beta}$
• Care more about getting $\color{orange}{\hat{Y}}$ as accurate as possible, $\color{teal}{f}$ is an unknown “black-box”
• Tweak models to maximize $R^2$, minimize $\hat{\sigma}_u$ (at all costs)

## Two Types of Uses For Regression

Example

Supplemental Nutrition Assistance Program (SNAP aka “Food Stamps”) is a federal welfare program designed to assist those in poverty by supplementing their budget for nutritious food.

1. Causal inference: what is the affect of SNAP on poverty reduction?
1. Prediction: who will enroll in SNAP?

## Two Types of Uses For Regression

Example

Netflix uses your past viewing history, the day of the week, and the time of the day to guess which show you want to watch next

1. Causal inference: how does the time of day affect what shows people select?
1. Prediction: what will be the next show you select?

# The Sampling Distributions of the OLS Estimators

## Recall: Two Big Problems with Data

• We use econometrics to identify causal relationships & make inferences about them:
1. Problem for identification: endogeneity
• $X$ is exogenous if its variation is unrelated to other factors $(u)$ that affect $Y$
• $X$ is endogenous if its variation is related to other factors $(u)$ that affect $Y$
2. Problem for inference: randomness
• Data is random due to natural sampling variation
• Taking one sample of a population will yield slightly different information than another sample of the same population

## Distributions of the OLS Estimators

$Y_i = \beta_0+\beta_1 X_i+u_i$

• OLS estimators $(\hat{\beta_0}$ and $\hat{\beta_1})$ are computed from a finite (specific) sample of data

• Our OLS model contains 2 sources of randomness:

• Modeled randomness: population $u_i$ includes all factors affecting $Y$ other than $X$
• different samples will have different values of those other factors $(u_i)$
• Sampling randomness: different samples will generate different OLS estimators
• Thus, $\hat{\beta_0}, \hat{\beta_1}$ are also random variables, with their own sampling distribution

## Inferential Statistics and Sampling Distributions

• Inferential statistics analyzes a sample to make inferences about a much larger (unobservable) population

• Population: all possible individuals that match some well-defined criterion of interest

• Characteristics about (relationships between variables describing) populations are called “parameters”
• Sample: some portion of the population of interest to represent the whole

• Samples examine part of a population to generate .hi-turquoise[statistics] used to estimate population parameters

## Sampling Basics

Example

Suppose you randomly select 100 people and ask how many hours they spend on the internet each day. You take the mean of your sample, and it comes out to 5.4 hours.

• 5.4 hours is a sample statistic describing the sample; we are more interested in the corresponding parameter of the relevant population (e.g. all Americans)
• If we take another sample of 100 people, would we get the same number?
• Roughly, but probably not exactly

• Sampling variability describes the effect of a statistic varying somewhat from sample to sample

• This is normal, not the result of any error or bias!

## i.i.d. Samples

• If we collect many samples, and each sample is randomly drawn from the population (and then replaced), then the distribution of samples is said to be independently and identically distributed (i.i.d.)

• Each sample is independent of each other sample (due to replacement)

• Each sample comes from the identical underlying population distribution

## The Sampling Distribution of OLS Estimators

• Calculating OLS estimators for a sample makes the OLS estimators themselves random variables:

• Draw of $i$ is random $\implies$ value of each $(X_i,Y_i)$ is random $\implies$ $\hat{\beta_0},\hat{\beta_1}$ are random

• Taking different samples will create different values of $\hat{\beta_0},\hat{\beta_1}$

• Therefore, $\hat{\beta_0},\hat{\beta_1}$ each have a sampling distribution across different samples

## The Central Limit Theorem

The Central Limit Theorem

If we collect samples of size $n$ from the same population and generate a sample statistic (e.g. OLS estimator), then with large enough $n$, the distribution of the sample statistic is approximately normal if:

1. $n \geq 30$
2. Samples come from a known normal distribution $\sim N(\mu,\sigma)$
• If neither of these are true, we have other methods (coming shortly!)

• One of the most fundamental principles in all of statistics

• Allows for virtually all testing of statistical hypotheses $\rightarrow$ estimating probabilities of values on a normal distribution

## The Sampling Distribution of $\hat{\beta_1}$ I

• The CLT allows us to approximate the sampling distributions of $\hat{\beta_0}$ and $\hat{\beta_1}$ as normal

• We care about $\hat{\beta_1}$ (slope) since it has economic meaning, rarely about $\hat{\beta_0}$ (intercept)

$\hat{\beta_1} \sim N(\mathbb{E}[\hat{\beta_1}], \sigma_{\hat{\beta_1}})$

## The Sampling Distribution of $\hat{\beta_1}$ II

$\hat{\beta_1} \sim N(\mathbb{E}[\hat{\beta_1}], \sigma_{\hat{\beta_1}})$

• We want to know:
1. $\mathbb{E}[\hat{\beta_1}]$; what is the center of the distribution? (today)

2. $\sigma_{\hat{\beta_1}}$; how precise is our estimate? (next class)

# Bias and Exogeneity

• In order to talk about $\mathbb{E}[\hat{\beta_1}]$, we need to talk about population $u$

• Recall: $u$ is a random variable, and we can never measure the error term

• We make 4 critical assumptions about $u$:
1. The expected value of the errors is 0

$\mathbb{E}[u]=0$

• We make 4 critical assumptions about $u$:
1. The expected value of the errors is 0

$\mathbb{E}[u]=0$

1. The variance of the errors over $X$ is constant:

$var(u|X)=\sigma^2_{u}$

• We make 4 critical assumptions about $u$:
1. The expected value of the errors is 0

$\mathbb{E}[u]=0$

1. The variance of the errors over $X$ is constant:

$var(u|X)=\sigma^2_{u}$

1. Errors are not correlated across observations:

$cor(u_i,u_j)=0 \quad \forall i \neq j$

• We make 4 critical assumptions about $u$:
1. The expected value of the errors is 0

$\mathbb{E}[u]=0$

1. The variance of the errors over $X$ is constant:

$var(u|X)=\sigma^2_{u}$

1. Errors are not correlated across observations:

$cor(u_i,u_j)=0 \quad \forall i \neq j$

1. There is no correlation between $X$ and the error term:

$cor(X, u)=0 \text{ or } E[u|X]=0$

1. The expected value of the errors is 0

$\mathbb{E}[u]=0$

1. The variance of the errors over $X$ is constant:

$var(u|X)=\sigma^2_{u}$

• The first two assumptions $\implies$ errors are i.i.d., drawn from the same distribution with mean 0 and variance $\sigma^2_{u}$

1. The variance of the errors over $X$ is constant:

$var(u|X)=\sigma^2_{u}$

• Assumption 2 implies that errors are “homoskedastic”: they have the same variance across $X$

• Often this assumption is violated: errors may be “heteroskedastic”: they do not have the same variance across $X$

• This is a problem for inference, but we have a simple fix for this (next class)

## Assumption 3: No Serial Correlation

1. Errors are not correlated across observations:

$cor(u_i,u_j)=0 \quad \forall i \neq j$

• For simple cross-sectional data, this is rarely an issue

• Time-series & panel data nearly always contain serial correlation or autocorrelation between errors

• e.g. “this week’s sales look a lot like last week’s sales, which look like…etc”

• There are fixes to deal with autocorrelation (coming much later)

## Assumption 4: The Zero Conditional Mean Assumption

• No correlation between $X$ and the error term:

$cor(X, u)=0$

• This is the absolute killer assumption, because it assumes exogeneity

• Often called the Zero Conditional Mean assumption:

$E[u|X]=0$

“Does knowing $X_i$ give any useful information about $u_i$?”

• If yes: model is endogenous, biased and not-causal!

## Exogeneity and Unbiasedness

• $\hat{\beta_1}$ is unbiased iff there is no systematic difference, on average, between sample values of $\hat{\beta_1}$ and true population parameter $\beta_1$, i.e.

$E[\hat{\beta_1}]=\beta_1$

• Does not mean any sample gives us $\hat{\beta_1}=\beta_1$, only the estimation procedure will, on average, yield the correct value

• Random errors above and below the true value cancel out (so that on average, $E[\hat{u}|X]=0)$

## Sidenote: Statistical Estimators I

• In statistics, an estimator is a rule for calculating a statistic (about a population parameter)

Example

We want to estimate the average height (H) of U.S. adults (population) and have a random sample of 100 adults.

• Calculate the mean height of our sample $(\bar{H})$ to estimate the true mean height of the population $(\mu_H)$

• $\bar{H}$ is an estimator of $\mu_H$

• There are many estimators we could use to estimate $\mu_H$
• How about using the first value in our sample: $H_1$ ?

## Sidenote: Statistical Estimators II

• What makes one estimator (e.g. $\bar{H}$) better than another (e.g. $H_1$)?1
1. Unbiasedness: does the estimator give us the true parameter on average?

2. Efficiency: an estimator with a smaller variance is better

## Exogeneity and Unbiasedness II

• $\mathbf{\hat{\beta_1}}$ is the Best Linear Unbiased Estimator (BLUE) estimator of $\mathbf{\beta_1}$ when $X$ is exogenous1

• No systematic difference, on average, between sample values of $\hat{\beta_1}$ and the true population $\beta_1$:

$E[\hat{\beta_1}]=\beta_1$

• Does not mean that each sample gives us $\hat{\beta_1}=\beta_1$, only the estimation procedure will, on average, yield the correct value

## Exogeneity and Unbiasedness III

• Recall, an exogenous variable $(X)$ is unrelated to other factors affecting $Y$, i.e.:

$cor(X,u)=0$

• Again, this is called the Zero Conditional Mean Assumption

$E(u|X)=0$

• For any known value of $X$, the expected value of $u$ is 0

• Knowing the value of $X$ must tell us nothing about the value of $u$ (anything else relevant to $Y$ other than $X$)

• We can then confidently assert causation: $X \rightarrow Y$

## Endogeneity and Bias

• Nearly all independent variables are endogenous, they are related to the error term $u$

$cor(X,u)\neq 0$

Example

Suppose we estimate the following relationship:

$\text{Violent crimes}_t=\beta_0+\beta_1\text{Ice cream sales}_t+u_t$

• We find $\hat{\beta_1}>0$

• Does this mean Ice cream sales $\rightarrow$ Violent crimes?

## Endogeneity and Bias: Takeaways

• The true expected value of $\hat{\beta_1}$ is actually:1

$E[\hat{\beta_1}]=\beta_1+cor(X,u)\frac{\sigma_u}{\sigma_X}$

1. If $X$ is exogenous: $cor(X,u)=0$, we’re just left with $\beta_1$
1. The larger $cor(X,u)$ is, larger bias: $\left(E[\hat{\beta_1}]-\beta_1 \right)$
1. We can “sign” the direction of the bias based on $cor(X,u)$
• Positive $cor(X,u)$ overestimates the true $\beta_1$ $(\hat{\beta_1}$ is too high)
• Negative $cor(X,u)$ underestimates the true $\beta_1$ $(\hat{\beta_1}$ is too low)

## Endogeneity and Bias: Example I

Example

$wages_i=\beta_0+\beta_1 education_i+u$

• Is this an accurate reflection of $education \rightarrow wages$?

• Does $E[u|education]=0$?

• What would $E[u|education]>0$ mean?

## Endogeneity and Bias: Example II

Example

$\text{per capita cigarette consumption}=\beta_0+\beta_1 \text{State cig tax rate}+u$

• Is this an accurate reflection of $taxes \rightarrow consumption$?

• Does $E[u|tax]=0$?

• What would $E[u|tax]>0$ mean?
