2.5 — Precision and Diagnostics

ECON 480 • Econometrics • Fall 2022

Dr. Ryan Safner
Associate Professor of Economics

safner@hood.edu
ryansafner/metricsF22
metricsF22.classes.ryansafner.com

Contents

Variation in \(\hat{\beta}_1\)

Presenting Regression Results

Diagnostics About Regression

Heteroskedasticity

Outliers

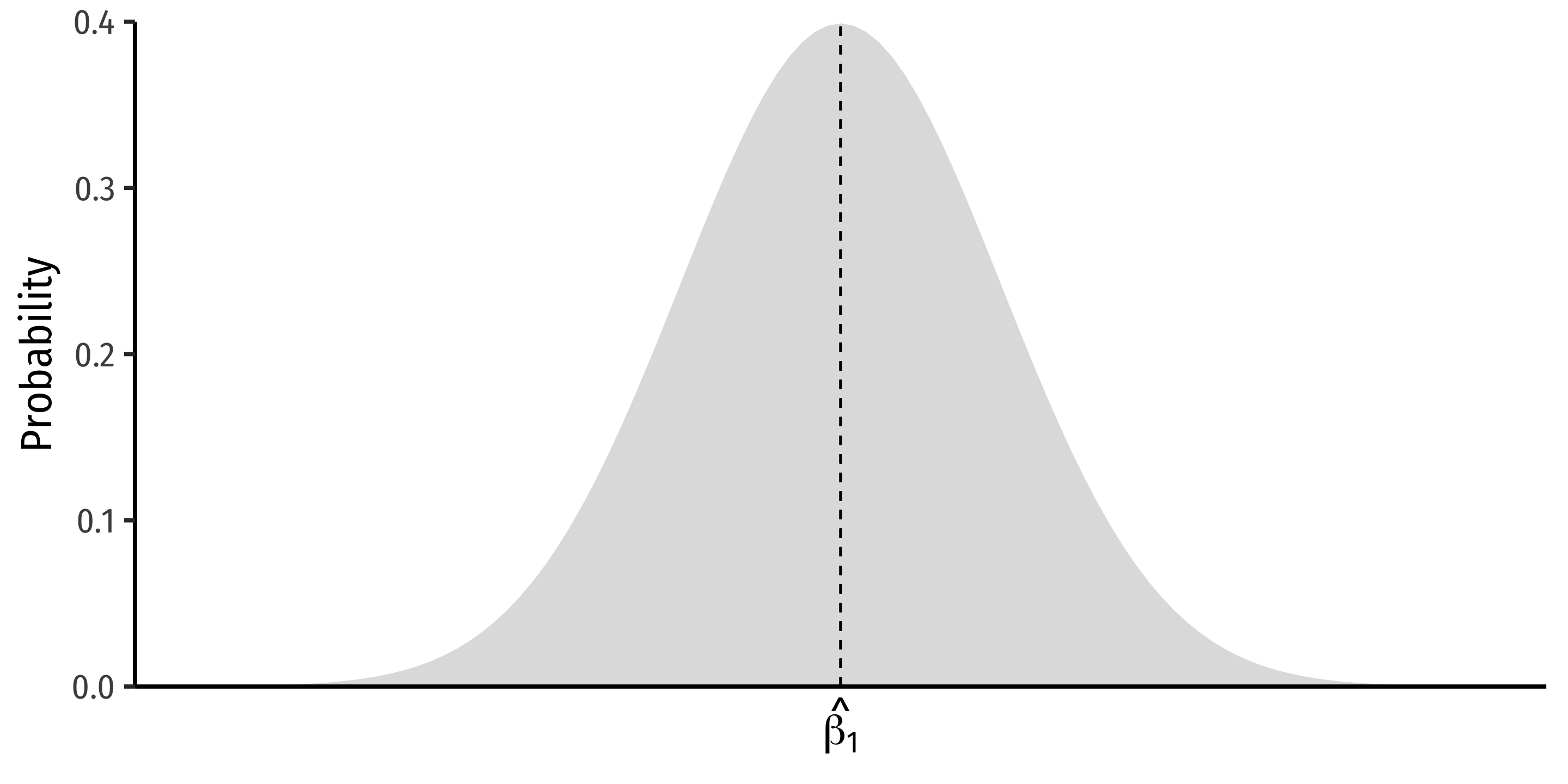

The Sampling Distribution of \(\hat{\beta_1}\)

\[\hat{\beta_1} \sim N(\mathbb{E}[\hat{\beta_1}], \sigma_{\hat{\beta_1}})\]

The Sampling Distribution of \(\hat{\beta_1}\)

\[\hat{\beta_1} \sim N(\mathbb{E}[\hat{\beta_1}], \sigma_{\hat{\beta_1}})\]

1. Center¹ of the distribution: \(\mathbb{E}[\hat{\beta_1}]\) (last class)

1. Under the 4 assumptions about \(u\), particularly, \(cor(X,u)=0\)

The Sampling Distribution of \(\hat{\beta_1}\)

\[\hat{\beta_1} \sim N(\mathbb{E}[\hat{\beta_1}], \sigma_{\hat{\beta_1}})\]

1. Center¹ of the distribution: \(\mathbb{E}[\hat{\beta_1}]\) (last class)

2. Precision or uncertainty of the estimate (today)

   • Variance \(\sigma^2_{\hat{\beta}_1}\)
   • Standard error² \(\sigma_{\hat{\beta}_1} = \sqrt{var(\hat{\beta}_1)}\)

1. Under the 4 assumptions about \(u\), particularly, \(cor(X,u)=0\)

2. Standard “error” is the analog of standard deviation when talking about the sampling distribution of a sample statistic (such as \(\bar{X}\) or \(\hat{\beta_1})\)

The Sampling Distribution of \(\hat{\beta_1}\)

\[\hat{\beta_1} \sim N(\mathbb{E}[\hat{\beta_1}], \sigma_{\hat{\beta_1}})\]

1. Center¹ of the distribution: \(\mathbb{E}[\hat{\beta_1}]\) (last class)

2. Precision or uncertainty of the estimate (today)

   • Variance \(\sigma^2_{\hat{\beta}_1}\)
   • Standard error² \(\sigma_{\hat{\beta}_1} = \sqrt{var(\hat{\beta}_1)}\)

1. Under the 4 assumptions about \(u\), particularly, \(cor(X,u)=0\)

2. Standard “error” is the analog of standard deviation when talking about the sampling distribution of a sample statistic (such as \(\bar{X}\) or \(\hat{\beta_1})\)

Variation in \(\hat{\beta}_1\)

What Affects Variation in \(\hat{\beta_1}\)

\[var(\hat{\beta_1})=\frac{(SER)^2}{n \times var(X)}\]

\[se(\hat{\beta_1})=\sqrt{var(\hat{\beta_1})} = \frac{SER}{\sqrt{n} \times sd(X)}\]

• Variation in \(\hat{\beta_1}\) is affected by 3 things:

1. Goodness of fit of the model (SER)¹
   • Larger \(SER\) \(\rightarrow\) larger \(var(\hat{\beta_1})\)
2. Sample size, n
   • Larger \(n\) \(\rightarrow\) smaller \(var(\hat{\beta_1})\)
3. Variance of X
   • Larger \(var(X)\) \(\rightarrow\) smaller \(var(\hat{\beta_1})\)

1. Recall from last class, the Standard Error of the Regression \(\hat{\sigma_u} = \sqrt{\frac{\sum \hat{u_i}^2}{n-2}}\)

Variation in \(\hat{\beta_1}\): Goodness of Fit

Variation in \(\hat{\beta_1}\): Sample Size

Variation in \(\hat{\beta_1}\): Variation in \(X\)

Presenting Regression Results

Our Class Size Regression

school_reg %>% summary()

Call:
lm(formula = testscr ~ str, data = ca_school)

Residuals:
    Min      1Q  Median      3Q     Max
-47.727 -14.251   0.483  12.822  48.540

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept) 698.9330     9.4675  73.825  < 2e-16 ***
str          -2.2798     0.4798  -4.751 2.78e-06 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 18.58 on 418 degrees of freedom
Multiple R-squared:  0.05124,   Adjusted R-squared:  0.04897
F-statistic: 22.58 on 1 and 418 DF,  p-value: 2.783e-06

• How can we present all of this information in a tidy way?

Our Class Size Regression

library(broom)
school_reg %>% tidy()

term	estimate	std.error	statistic	p.value
(Intercept)	698.932952	9.4674914	73.824514	0.0e+00
str	-2.279808	0.4798256	-4.751327	2.8e-06

school_reg %>% glance()

r.squared	adj.r.squared	sigma	statistic	p.value	df	logLik	AIC	BIC	deviance	df.residual	nobs
0.0512401	0.0489703	18.58097	22.57511	2.8e-06	1	-1822.25	3650.499	3662.62	144315.5	418	420

• Better (?), but still not how you see regressions reported in reports…especially when you have many regression models!

Regression Tables

• Professional journals and papers often have a regression table, including:
  • Estimates of \(\hat{\beta_0}\) and \(\hat{\beta_1}\)
  • Standard errors of \(\hat{\beta_0}\) and \(\hat{\beta_1}\) (often below, in parentheses)
  • Indications of statistical significance (often with asterisks)
  • Measures of regression fit: \(R^2\), \(SER\), etc
• Later: multiple rows & columns for multiple variables & models

	Test Score
Constant	698.93***
	(9.47)
STR	−2.28***
	(0.48)
n	420
R2	0.05
SER	18.54
* p < 0.1, ** p < 0.05, *** p < 0.01

Regression Output Tables

• A number of packages (and documentation/guides) that will make nice regression output tables for you:
  • modelsummary
  • stargazer (and a good cheat sheet)
  • huxtable

	Test Score
Constant	698.93***
	(9.47)
STR	−2.28***
	(0.48)
n	420
R2	0.05
SER	18.54
* p < 0.1, ** p < 0.05, *** p < 0.01

Using modelsummary I

• You will need to first install.packages("modelsummary")

• Load with library(modelsummary)

• Command: modelsummary()

• Main argument is the name of your lm regression object

• Default output is fine, but often we want to customize a bit!

# install.packages("modelsummary") # install first!
# load package
library(modelsummary)

modelsummary(school_reg) # our regression

	Model 1
(Intercept)	698.933
	(9.467)
str	−2.280
	(0.480)
Num.Obs.	420
R2	0.051
R2 Adj.	0.049
AIC	3650.5
BIC	3662.6
F	22.575
RMSE	18.54

Using modelsummary II

• Whole command is modelsummary(), everything will go in ()

1. models, a list() of models to use, can give a name to each model, will show up as column title in table

models = list("Test Score" = school_reg) # set name to "Test Score"

2. coef_rename if you want to rename any independent variables as something nicer than their names in the dataset
   • "old name" = "new name" (yes annoying!)

coef_rename = list("(Intercept)" = "Constant",
                   "str" = "Student Teacher Ratio")

Using modelsummary III

• Whole command is modelsummary(), everything will go in ()

3. gof_map: a list() of goodness of fit statistics, can customize what you want to include/exclude, what you want to label them in the table…a bit advanced, here’s what I like:

gof_map = list(
  list("raw" = "nobs", "clean" = "n", "fmt" = 0),
  list("raw" = "r.squared", "clean" = "R<sup>2</sup>", "fmt" = 2),
  #list("raw" = "adj.r.squared", "clean" = "Adj. R<sup>2</sup>", "fmt" = 2), # we'll want this later!
  list("raw" = "rmse", "clean" = "SER", "fmt" = 2)
  )

4. Other minor options (combine with commas):

fmt = 2, # round to 2 decimals
output = "html" # depending on type of document creating; pdf would be "latex"
escape = FALSE # allows formatting of things like <sup>2</sup>
stars = c('*' = .1, '**' = .05, '***' = 0.01) # show significance levels if set to true, I don't like the defaults so I set my own

Using modelsummary IV

modelsummary(models = list("Test Score" = school_reg),
             fmt = 2, # round to 2 decimals
             output = "html",
             coef_rename = c("(Intercept)" = "Constant",
                             "str" = "STR"),
             gof_map = list(
               list("raw" = "nobs", "clean" = "n", "fmt" = 0),
               list("raw" = "r.squared", "clean" = "R<sup>2</sup>", "fmt" = 2),
               #list("raw" = "adj.r.squared", "clean" = "Adj. R<sup>2</sup>", "fmt" = 2),
               list("raw" = "rmse", "clean" = "SER", "fmt" = 2)
             ),
             escape = FALSE,
             stars = c('*' = .1, '**' = .05, '***' = 0.01)
)

	Test Score
Constant	698.93***
	(9.47)
STR	−2.28***
	(0.48)
n	420
R2	0.05
SER	18.54
* p < 0.1, ** p < 0.05, *** p < 0.01

modelplot() in modelsummary

Also nice about the modelsummary package is the command modelplot()

modelplot(school_reg)

modelplot() in modelsummary

Also nice about the modelsummary package is the command modelplot()

modelplot(school_reg,
          coef_omit = 'Intercept') # don't show intercept

Though You Could Make It Yourself in ggplot

• Use the conf.low and conf.high (from a tidy regression) as xmin and xmax aesthetics inside geom_errorbarh().

school_reg %>%
  tidy(conf.int = TRUE) %>%
  filter(term == "str") %>%
  ggplot()+
  aes(x = estimate,
      y = term)+
  geom_point(size = 3)+
  geom_errorbarh(aes(xmin = conf.low, xmax = conf.high),
                 height = 0.1)+ # height of whiskers
  theme_light()

Diagnostics About Regression

Diagnostics: Residuals I

• We often look at the residuals of a regression to get more insight about its goodness of fit and its bias

• Recall broom’s augment creates some useful new variables

  • .fitted are fitted (predicted) values from model, i.e. \(\hat{Y}_i\)
  • .resid are residuals (errors) from model, i.e. \(\hat{u}_i\)

Diagnostics: Residuals II

• Often a good idea to store in a new object (so we can make some plots)

aug_reg <- augment(school_reg)

aug_reg %>% head()

testscr	str	.fitted	.resid	.hat	.sigma	.cooksd	.std.resid
690.80	17.88991	658.1474	32.65260	0.0044244	18.53408	0.0068925	1.7612148
661.20	21.52466	649.8608	11.33917	0.0047485	18.59490	0.0008927	0.6117112
643.60	18.69723	656.3069	-12.70689	0.0029742	18.59279	0.0006996	-0.6848850
647.70	17.35714	659.3620	-11.66198	0.0058575	18.59441	0.0011673	-0.6294767
640.85	18.67133	656.3659	-15.51592	0.0030072	18.58766	0.0010548	-0.8363024
605.55	21.40625	650.1308	-44.58076	0.0044603	18.47411	0.0129531	-2.4046387

Recall: Assumptions about Errors

• We make 4 critical assumptions about \(u\):

1. The expected value of the errors is 0

\[\mathbb{E}[u]=0\]

2. The variance of the errors over \(X\) is constant:

\[var(u|X)=\sigma^2_{u}\]

3. Errors are not correlated across observations:

\[cor(u_i,u_j)=0 \quad \forall i \neq j\]

4. There is no correlation between \(X\) and the error term:

\[cor(X, u)=0 \text{ or } E[u|X]=0\]

Assumptions 1 and 2: Errors are i.i.d.

• Assumptions 1 and 2 assume that errors are coming from the same (normal) distribution

\[u \sim N(0, \sigma_u)\]

• Assumption 1: \(E[u]=0\)
• Assumption 2: \(sd(u|X)=\sigma_u\)
  • virtually always unknown…
• We often can visually check by plotting a histogram of \(u\)

Plotting a Histogram of Residuals

• Plot
• Code

ggplot(data = aug_reg)+
  aes(x = .resid)+
  geom_histogram(color="white", fill = "pink")+
  labs(x = expression(paste("Residual, ", hat(u))))+
  scale_y_continuous(limits = c(20, 40),
                     expand = c(0,0))+
  theme_light(base_family = "Fira Sans Condensed",
           base_size=20)

Checking the Distribution of Residuals

school_reg %>% summary()

Call:
lm(formula = testscr ~ str, data = ca_school)

Residuals:
    Min      1Q  Median      3Q     Max
-47.727 -14.251   0.483  12.822  48.540

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept) 698.9330     9.4675  73.825  < 2e-16 ***
str          -2.2798     0.4798  -4.751 2.78e-06 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 18.58 on 418 degrees of freedom
Multiple R-squared:  0.05124,   Adjusted R-squared:  0.04897
F-statistic: 22.58 on 1 and 418 DF,  p-value: 2.783e-06

aug_reg %>%
  summarize(E_u = mean(.resid),
            sd_u = sd(.resid))

E_u	sd_u
0	18.55878

Residual Plot

• We often plot a residual plot to see any odd patterns about residuals
  • \(x\)-axis are \(\hat{Y}_i\) values (.fitted)
  • \(y\)-axis are \(u_i\) values (.resid)

• Plot
• Code

ggplot(data = aug_reg)+
  aes(x = .fitted,
      y = .resid)+
  geom_point(color = "blue")+
  geom_hline(aes(yintercept = 0), color = "red")+
  labs(x = expression(paste("Predicted Test Score,", hat(y)[i])),
       y = expression(paste("Residual, ", hat(u)[i])))+
  theme_light(base_family = "Fira Sans Condensed",
           base_size = 20)

Heteroskedasticity

Homoskedasticity

• “Homoskedasticity:” variance of the residuals over \(X\) is constant, written:

\[var(u|X)=\sigma^2_{u}\]

• Knowing the value of \(X\) does not affect the variance (spread) of the errors

Heteroskedasticity I

• “Heteroskedasticity:” variance of the residuals over \(X\) is NOT constant:

\[var(u|X) \neq \sigma^2_{u}\]

• This does not cause \(\hat{\beta_1}\) to be biased, but it does cause the standard error of \(\hat{\beta_1}\) to be incorrect

• This does cause a problem for inference!

  • Specifically, it will make \(se(\hat{\beta}_1)\) wrong (often too small)¹

1. Later, when we learn about hypothesis testing, having standard errors incorrectly too small will overstate the significance of the finding.

Heteroskedasticity II

• Recall the formula for the standard error of \(\hat{\beta_1}\):

\[se(\hat{\beta_1})=\sqrt{var(\hat{\beta_1})} = \frac{SER}{\sqrt{n} \times sd(X)}\]

• This assumes homoskedasticity (Assumption 2)

Heteroskedasticity III

• A better formula for estimating standard errors that are robust to heteroskedasticity (called “robust standard errors”):

\[se(\hat{\beta_1})=\sqrt{\frac{\displaystyle\sum^n_{i=1}(X_i-\bar{X})^2\hat{u}^2}{\big[\displaystyle\sum^n_{i=1}(X_i-\bar{X})^2\big]^2}}\]

• Don’t learn formula, do learn what heteroskedasticity is and how it affects our model!

Visualizing Heteroskedasticity I

• Our original scatterplot with regression line

• Does the spread of the errors change over different values of \(str\)?

  • No: homoskedastic
  • Yes: heteroskedastic

Visualizing Heteroskedasticity

• Notice the distribution of \(\hat{u}\), changes for different values of STR, and \(\sigma_{\hat{u}}\) is not constant

More Obvious Heteroskedasticity

• Visual cue: data is “fan-shaped”
  • Data points are closer to line in some areas
  • Data points are more spread from line in other areas

More Obvious Heteroskedasticity

What Might Cause Heteroskedastic Errors?

\[wage_i=\beta_0+\beta_1educ_i+u_i\]

What Might Cause Heteroskedastic Errors?

\[wage_i=\beta_0+\beta_1educ_i+u_i\]

What Might Cause Heteroskedastic Errors?

\[wage_i=\beta_0+\beta_1educ_i+u_i\]

	Wage
Intercept	−0.90
	(0.68)
Years of Schooling	0.54***
	(0.05)
n	526
R2	0.16
SER	3.37
* p < 0.1, ** p < 0.05, *** p < 0.01

What Might Cause Heteroskedastic Errors?

Detecting Heteroskedasticity I

• Several tests to check if data is heteroskedastic
• One common test is Breusch-Pagan test
• Can use the lmtest package’s function bptest()
  • \(H_0\): homoskedastic¹
  • If \(p\)-value < 0.05, reject \(H_0\implies\) heteroskedastic

library("lmtest")
school_reg %>% bptest()

    studentized Breusch-Pagan test

data:  .
BP = 5.7936, df = 1, p-value = 0.01608

• Since \(p<0.05\), can reject \(H_0\) that errors are homoskedastic and conclude they are heteroskedastic

1. More on hypothesis testing next week!

How About the Wages Regression?

wage_reg %>% bptest()

    studentized Breusch-Pagan test

data:  .
BP = 15.306, df = 1, p-value = 9.144e-05

Fixing Heteroskedasticity I

• Heteroskedasticity is easy to fix with software that can calculate robust standard errors (using the more complicated formula above)

• Easiest method is to use estimatr package
  • lm_robust() command (instead of lm) to run regression
  • set se_type = "stata" to calculate robust SEs using the formula above¹

#install.packages("estimatr")
library(estimatr)

1. This uses the method that Stata uses with the robust command, one advantage Stata has over R.

Fixing Heteroskedasticity II

school_reg_robust <- lm_robust(testscr ~ str, data = ca_school,
                              se_type = "stata")

school_reg_robust

              Estimate Std. Error   t value      Pr(>|t|)   CI Lower   CI Upper
(Intercept) 698.932952 10.3643599 67.436191 9.486678e-227 678.560192 719.305713
str          -2.279808  0.5194892 -4.388557  1.446737e-05  -3.300945  -1.258671
             DF
(Intercept) 418
str         418

school_reg_robust %>% summary()

Call:
lm_robust(formula = testscr ~ str, data = ca_school, se_type = "stata")

Standard error type:  HC1

Coefficients:
            Estimate Std. Error t value   Pr(>|t|) CI Lower CI Upper  DF
(Intercept)   698.93    10.3644  67.436 9.487e-227  678.560  719.306 418
str            -2.28     0.5195  -4.389  1.447e-05   -3.301   -1.259 418

Multiple R-squared:  0.05124 ,  Adjusted R-squared:  0.04897
F-statistic: 19.26 on 1 and 418 DF,  p-value: 1.447e-05

Fixing Heteroskedasticity III

# can tidy, glance, augment, etc
school_reg_robust %>% tidy()

term	estimate	std.error	statistic	p.value	conf.low	conf.high	df	outcome
(Intercept)	698.932952	10.3643599	67.436191	0.00e+00	678.560192	719.305713	418	testscr
str	-2.279808	0.5194892	-4.388557	1.45e-05	-3.300945	-1.258671	418	testscr

school_reg_robust %>% glance()

r.squared	adj.r.squared	statistic	p.value	df.residual	nobs	se_type
0.0512401	0.0489703	19.25943	1.45e-05	418	420	HC1

Showing The Effect of Heteroskedasticity (on \(se(\hat{\beta}_1)\))

modelsummary(models = list("Normal SE" = school_reg,
                           "Robust SE" = school_reg_robust),
             fmt = 2, # round to 2 decimals
             output = "html",
             coef_rename = c("(Intercept)" = "Constant",
                             "str" = "STR"),
             gof_map = list(
               list("raw" = "nobs", "clean" = "n", "fmt" = 0),
               list("raw" = "r.squared", "clean" = "R<sup>2</sup>", "fmt" = 2),
               #list("raw" = "adj.r.squared", "clean" = "Adj. R<sup>2</sup>", "fmt" = 2),
               list("raw" = "rmse", "clean" = "SER", "fmt" = 2)
             ),
             escape = FALSE,
             stars = c('*' = .1, '**' = .05, '***' = 0.01)
)

	Normal SE	Robust SE
Constant	698.93***	698.93***
	(9.47)	(10.36)
STR	−2.28***	−2.28***
	(0.48)	(0.52)
n	420	420
R2	0.05	0.05
SER	18.54	18.54
* p < 0.1, ** p < 0.05, *** p < 0.01

• What changed?

Outliers

Outliers Can Bias OLS! I

• Outliers can affect the slope (and intercept) of the line and add bias
  • May be result of human error (measurement, transcribing, etc)
  • May be meaningful and accurate
• In any case, compare how including/dropping outliers affects regression and always discuss outliers!

Outliers Can Bias OLS! II

Outliers Can Bias OLS! II

Outliers Can Bias OLS! III

	Original	With Outliers
Constant	698.93***	641.40***
	(9.47)	(11.21)
STR	−2.28***	0.71
	(0.48)	(0.57)
n	420	423
R2	0.05	0.00
SER	18.54	23.71
* p < 0.1, ** p < 0.05, *** p < 0.01

Detecting Outliers

• The car package has an outlierTest command to run on the regression

# install.packages("car")
library("car")

# Use Bonferonni test
outlierTest(school_outlier_reg) # will point out which obs #s seem outliers

    rstudent unadjusted p-value Bonferroni p
422 8.822768         3.0261e-17   1.2800e-14
423 7.233470         2.2493e-12   9.5147e-10
421 6.232045         1.1209e-09   4.7414e-07

# find these observations
ca_school_outliers %>%
  slice(c(422,423,421)) # find observations 422, 423, 421

observat	district	testscr	str
422	Crazy District 2	850	28
423	Crazy District 3	820	29
421	Crazy District 1	800	30
